4km Long Range Night Vision Laser Network PTZ Camera
Features of BIT-RC2075W Long Range HD Network Laser Night Vision PTZ Camera
4km day/2km night long range 24 hour surveillance
1080P HD network camera, 0.0002lux color to B/W
23~750mm lens, motorized zoom, auto focus
15W, 808nm NIR military laser illuminator
360 continuous pan rotation, tilt angle: -45°~+40°
Pan: 0.01°/s-30°/s , tilt: 0.01°/s-15°/s rotation speed
Support absolute control, coordinate display, preset, cruising and scan
Die-cast aluminum alloy housing, IP66 ingress protection
4km day/2km night long range 24 hour surveillance
1080P HD network camera, 0.0002lux color to B/W
23~750mm lens, motorized zoom, auto focus
15W, 808nm NIR military laser illuminator
360 continuous pan rotation, tilt angle: -45°~+40°
Pan: 0.01°/s-30°/s , tilt: 0.01°/s-15°/s rotation speed
Support absolute control, coordinate display, preset, cruising and scan
Die-cast aluminum alloy housing, IP66 ingress protection
BIT-RC2075W
Quantity:

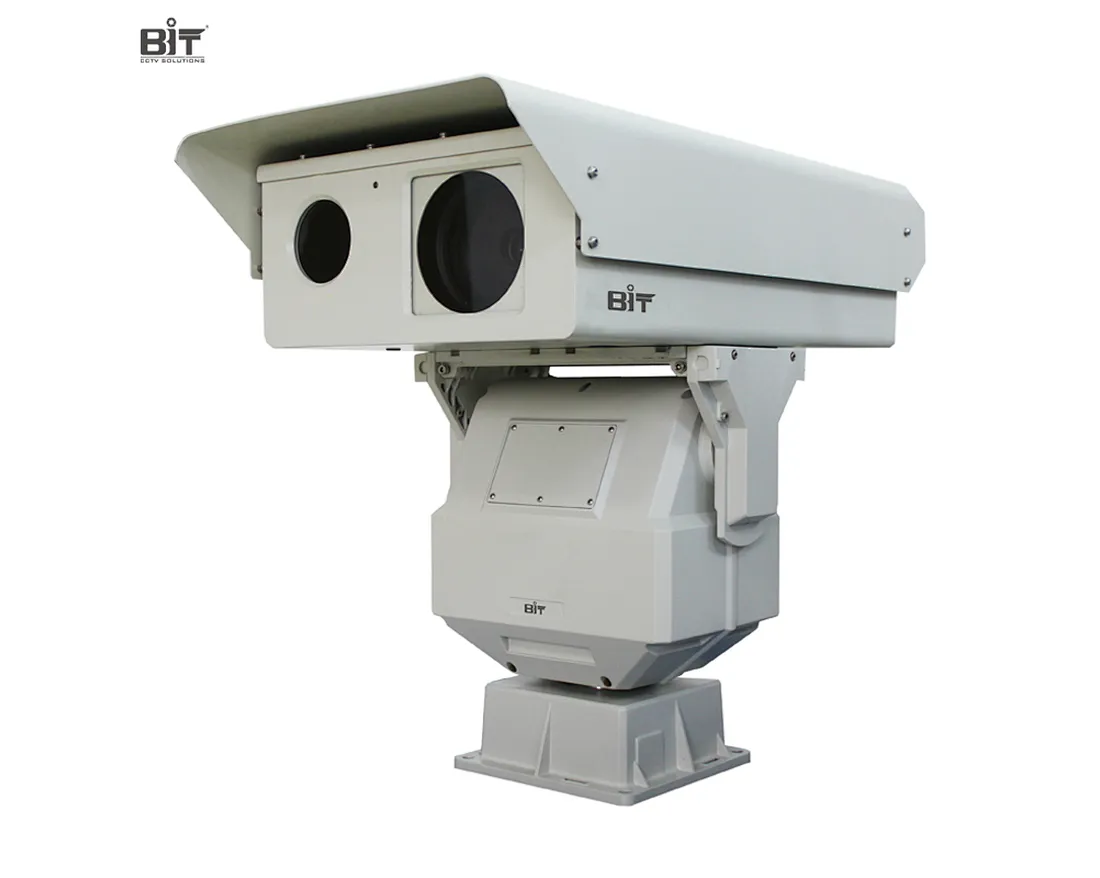

Overview of BIT-RC2075W Long Range HD Network Laser Night Vision PTZ Camera
The BIT-RC2075W, a long range CCTV camera with a detection range of 4km during the day and 2km at night, is designed for 24-hour monitoring in all-weather conditions. This 4km long-range night vision laser network PTZ camera features a super homogeneous NIR laser and a low-illumination megapixel telephoto lens for enhanced visibility.
With its built-in industrial-grade embedded control electronic system, the camera ensures stable and accurate HD network camera operations, including zoom, focus, video switching, and pan-tilt rotation. Housed in a single aluminum alloy casing with a weatherproof IP66 rating, it guarantees exceptional outdoor performance.
Application Scenario: Ideal for extensive environments, such as smart cities, high-spot surveillance, mobile and traffic monitoring, railway and freeway security, prisons, harbors, maritime operations, plants, oil fields, electricity facilities, public security and fire-fighting, forest fire prevention, scenic sights, and more. This long distance CCTV camera and long-distance CCTV camera are suitable for a variety of applications, providing reliable and effective monitoring solutions.
Technical Specifications of BIT-RC2075W Long Range HD Network Laser Night Vision PTZ Camera
Model | BIT-RC2075W | |
Detection Range | Day:4km/Night:2km | |
Consumption | 15W, 808nm Military NIR | |
Laser Angle | 0.5°～20° | |
Angle & Distance Matching Technology | 1. DSS digital stepper illumination angle control, advanced laser angle and distance match technology, min 0.1° follow-up zoom | |
2. GHT-II super homogenizing HD illumination technology | ||
3. 0.01°SLM optical axis aiming and lock | ||
Camera | 1/1.8'' CMOS | |
0.0002lux high sensitive color to B/W CCD | ||
2MP, 1920*1080, Automatic ICR switch | ||
H.264/MPEG4/MIPEG video format, support dual stream | ||
Video Bitrate 32Kbps~16Mbps, 60Hz30 frame/S | ||
Support SD card storage | ||
Photo Cell Control | Control mode: independent photosensitive control circuit, precise synchronous switch laser and day/night | |
Lens | 23-750mm | |
F4.5~360 | ||
FOV: (H)15.7°～0.48° | ||
MOD:4M | ||
HD infrared correction, same focus at day and night | ||
Motorized /manual zoom, DC 8~12V, auto IRIS,DC5V | ||
Fog Penetration | AFR enhanced image processing technology (fog filter optional) | |
LPR (optional) | Avoid strong light for license plate recognition | |
Housing | 1. Material: Die-cast aluminum alloy housing, sealed and waterproof | |
2. Structure: double window design | ||
3. Surface treatment: PTA three-resistance coating, anti corrosion(optional) | ||
4.Weather proof: IP66, waterproof, dustproof | ||
5.Connector：Aviation water-proof connector | ||
PT | Pan: 360° continuous rotation，tilt: +40°～-45° | |
Rotation speed： Pan: 0.01°～30°/S, Tilt: 0.01°～15°/S | ||
Positioning accuracy: 0.1° | ||
Advanced movement: 200 preset positions, cruising track, pattern tour and auto scan | ||
Support coordinate query/feedback and absolute control | ||
Interface | 1*RJ45，1*AC/DC 24V | |
Optional: Reserve RC422/485 and BNC, connect with radar, GIS or others | ||
Military aviation water-proof connector | ||
Protocol | 1. TCP/IP、HTTP、DHCP、DNS、DDNS、RTP and more 2. Support Onvif 2.4 2. Protocol: Pelco-P/Pelco-D Baud rate: 2400、4800、9600、19200(optional) | |
Power supply | AC/DC 24V±10%，50Hz，150W， AC220V->AC24V adapter (DC12V for option) | |
Working Environment | 1. Working temperature: -25℃～+55℃ (-40℃ optional) 2. Storage temperature:-35℃～+65℃ 3. Working Humidity:<90% 4. Anti-Shaka 5.Anti-shock 6.IP66 protection | |
Weight | ≤45kg | |

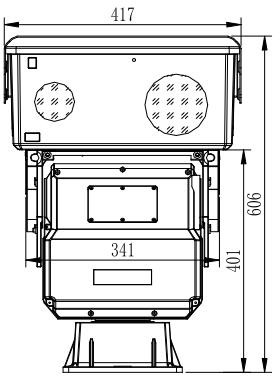

Dimension of BIT-RC2075W Long Range HD Network Laser Night Vision PTZ Camera
Unit: mm
FAQs of BIT-RC2075W Long Range HD Network Laser Night Vision PTZ Camera
What Is The Visible Camera And The Lens Used In Long Range Laser Night Vision PTZ Camera BIT-RC2075W?
A 1080P full HD network camera and a 23~750mm long focal length lens are used in BIT-RC2075W for long range day/night surveillance.
What Is The Load Capacity Of The Pan Tilt Unit In Laser Network PTZ Camera BIT-RC2075W?
Bit-RC2075W pan tilt is a heavy duty pan tilt unit with load capacity of 50kg, high precision 0.1 degree positioning.
How Is The Laser Illuminator On/off Switch Controlled In Laser Network PTZ Camera BIT-RC2075W?
BIT-RC2075W laser long range PTZ camera is equipped with independent photocell with precision control of laser illumination on/off.
What Is The Material Of Camera Housing Of Long Range Night Vision PTZ Camera BIT-RC2075W？
BIT-RC2075W laser network PTZ camera housing is made of die-cast aluminum alloy, not machined material, integrated design with IP66 rating.
