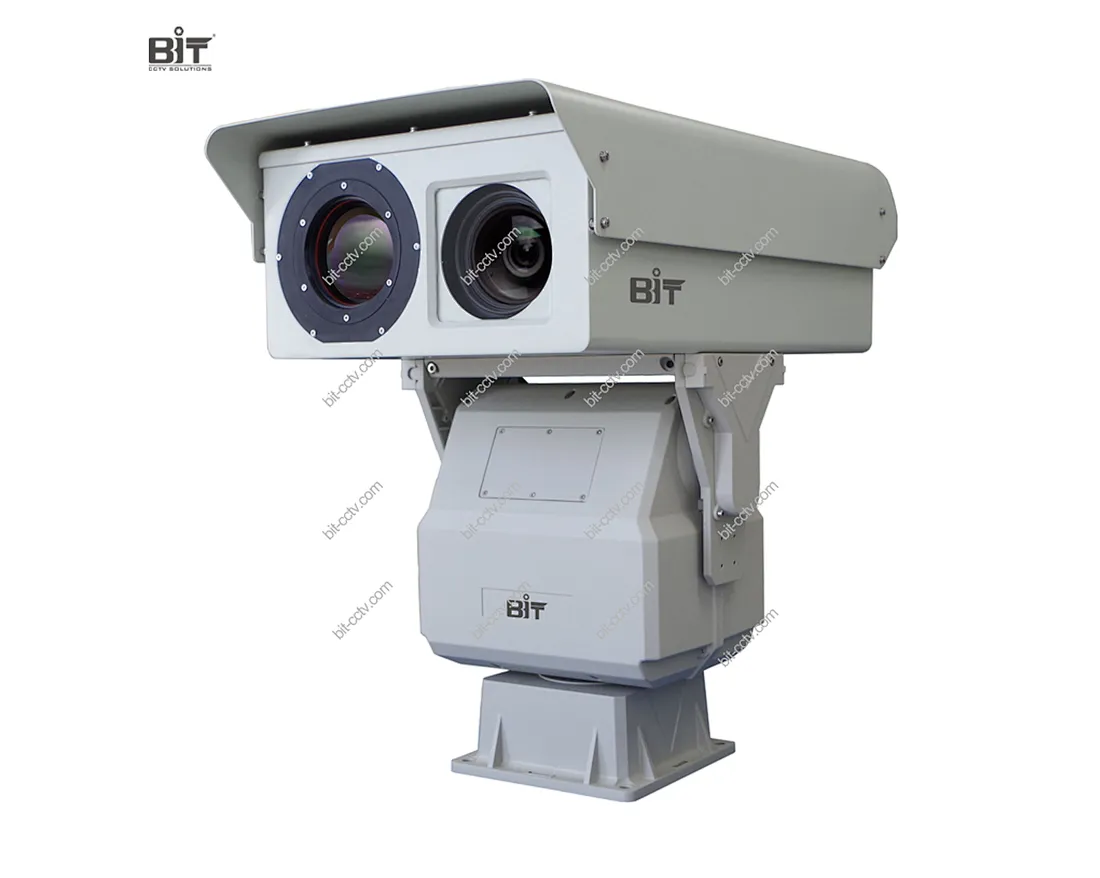

BIT-TVC4511W-2050-IP Long Range HD Visible and Thermal Imaging Dual Vision PTZ Camera

Features of BIT-TVC4511W-2050-IP HD Visible and Thermal Imaging Dual Vision PTZ Camera

Vox uncooled thermal camera, 384*288/640*512 resolution

21～105mm lens for thermal camera, motorized zoom and auto focus

Detection range 8.6km, recognition range 1.8km

1080P HD visible network camera, 15~528mm lens

360 continuous pan rotation, tilt angle: -45°~+45°

Pan: 0.01°/s-30°/s , tilt: 0.01°/s-15°/s rotation speed

Support absolute control, coordinate display, preset, cruising and scan

Die-cast aluminum alloy housing, IP66 ingress protections

BIT-TVC4511W-2050-IP

Quantity:

Overview

BIT-TVC4511-2050-IP stands as a specialized PTZ camera for unique industrial applications, combining long-range visible and thermal imaging dual vision capabilities. It supports a visible camera with 1080P HD resolution and a 15528mm lens, alongside a 384288/640512 uncooled thermal camera featuring a 21mm105mm lens. With a 360-degree continuous rotation high-precision pan-tilt unit, this dual-sensor PTZ infrared camera ensures 24-hour real-time security awareness, covering a detection range of up to 8.6km.

Its built-in industrial-grade electronic control system allows for easy operation of major functions such as zoom, focus, video switch, and pan/tilt movements. The IP66 ingress protection ensures exceptional performance in all-weather conditions.

Application Scenario: Suited for expansive environments, including smart cities, high-spot surveillance, mobile and traffic monitoring, railway and freeway security, prisons, harbors, maritime operations, plants, oil fields, electricity facilities, public security and fire-fighting, forest fire prevention, scenic sights, and more.

A PTZ thermal camera is a type of surveillance camera that combines the features of a Pan-Tilt-Zoom (PTZ) camera with thermal imaging technology.

PTZ thermal cameras are commonly employed in various sectors, including security, industrial monitoring, military, maritime, and search and rescue operations. They provide an effective solution for situations where both thermal imaging and the ability to adjust the camera's position are crucial for maintaining security and situational awareness.

Technical Specifications

Model	BIT-TVC4511W-2050-IP
Detection	Vehicle: 8,600m/Human: 2,100m
Identification	Vehicle: 1,800m/Human: 900m
Thermal sensor	VOx uncooled detector,384288 (640512 optional)
Thermal sensor	7.5um-14um spectral response, 50mk NETD
Thermal lens	21mm～105mm, 5X zoom
Thermal lens	Motorized zoom and auto focus
Fov（H）	18°～3.4°
Image processing	2X digital zoom; AGC; 10 pseudo color; SDE image enhancement
Visible sensor	1/1.8'' CMOS
	0.0002 lux super high sensitive color to B/W
	2.1MP ,1920X1080
	Automatic ICR switch
	H.265/H.264/MPEG4/MIPEG
	32Kbps~16Mbps, 60Hz,30 FPS
Visible lens	18mm～528mm, 30X zoom
	105mm super aperture
	motorized zoom
	DC8-12V
	auto aperture
	zoom data feedback
Fog Penetration	Support
Housing	1. Material:High strength aluminum alloy housing, waterproof seal, avoid the growth of mold and moisture
	2. Structure: Integrated double-window design
	3. Surface coating: PTA three-resistance coating, corrosion resistance
	4. Built-in thermostat, design of thermal equilibrium
	5. Interface:Aviation waterproof connector
Pan Tilt	Pan: 360° continuous rotation，tilt: +45°～-45°
	Rotation speed: Pan: 0.01°～30°/S, Tilt: 0.01°～15°/S
	Positioning accuracy: 0.1°
	Advanced movement: 200 preset positions, cruising track, pattern tour and auto scan
	Support coordinate query/feedback, angle real-time display and absolute control, zero position correction
Interface	1RJ45, 10M/100M adaptive Ethernet port (include thermal+HD visible+RS485) 1 AC24V/DC24V
Video format	H.264/H.265, Dual video output
Protocol	TCP/IP、HTTP、DHCP、DNS、DDNS、RTP etc.
	Support ONVIF2.4
	Pelco-P、Pelco-D,Baudrate 2400、4800、9600、19200 optional
Power supply	AC24V/DC24V±10%, 50Hz, 150W, Standard AC220V->AC24V power supply
Environment	1. Operating temperature:-40℃～+65℃
	2. Storage temperature:-40℃～+65℃
	3. Humidity:<90%
	4. Anti-lighting: built-in auto fuse-protected device, power 4000V, signal 2000V
	5. Ingress protection: IP66
Weight	≤30kg
