1080P 32X Starlight High Speed Network Vehicle PTZ Camera with IR Illuminator

BIT-HD3020R 1080P 32X Starlight High Speed Network Vehicle PTZ Camera with IR Illuminator

Features of BIT-HD3020R 1080P 32X Starlight High Speed Network Vehicle PTZ Camera with IR Illuminator

High protection and 5M3 anti-vibration level for vehicle load
High rotation speed：Pan 0.1°~100°/s；Tilt：0.1°~60°/s
360° continuous rotation, ± 90° tilt rotation
±0.1° rotation accuracy
128 preset positions
32X optical zoom/16X digital zoom
1080P Resolution, 25/30fps HD Image
H.265 and H.264 dual-stream encoding, ONVIF 2.4 compliant
Super Wide Dynamic Range
100m night vision range with IR LED array lights
IP67 ingress protection
Built-in heater/blower fan/wiper

BIT-HD3020R

Quantity:

Overview of BIT-HD3020R 1080P 32X Starlight High Speed Network Vehicle PTZ Camera with IR Illuminator

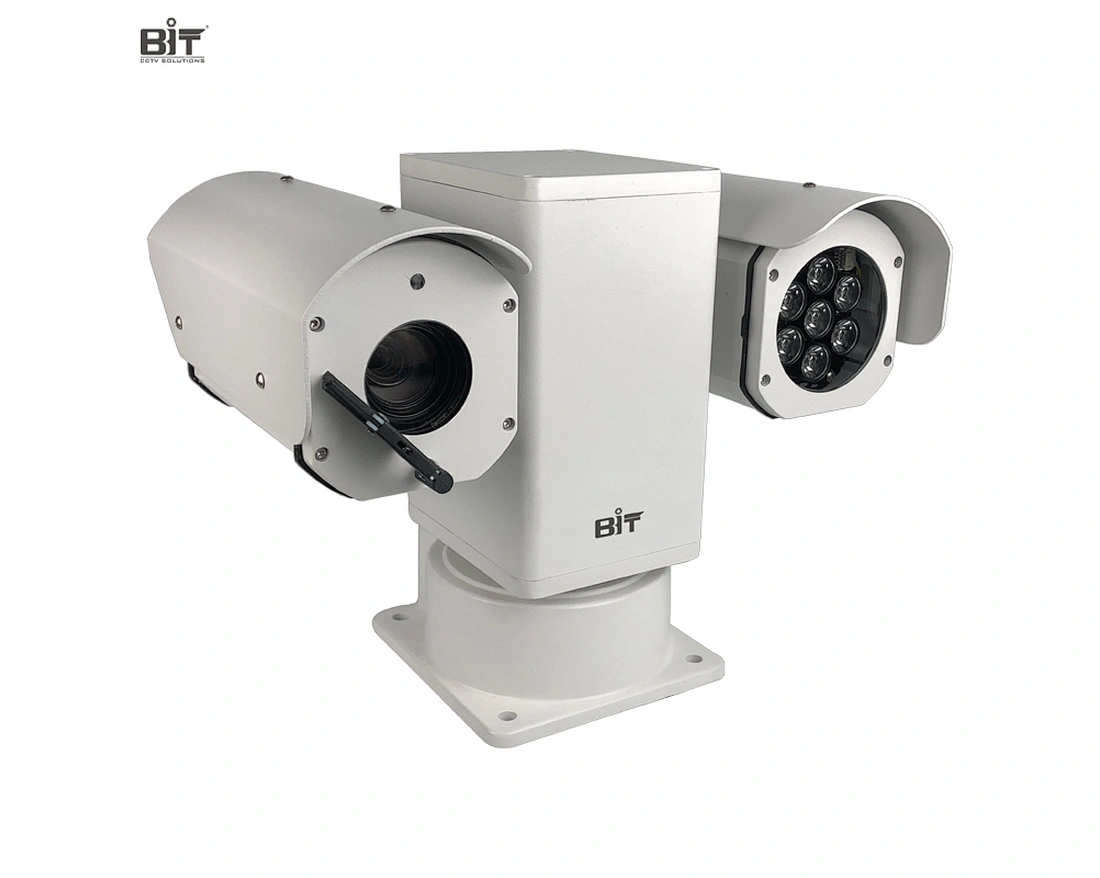

HDH3020R is a 32x starlight 1080P high speed network PTZ camera with IR LED illuminator for vehicle, indoor and outdoor use. It features 1080P full HD resolution, H.265 network video compression and 0.0002Lux @B/W super low illumination, allowing users to surveil and control through network from anywhere with high quality video image. After our reduplicated tests, this product features 5M3 anti-vibration level and IP67 protection, and is an ideal choice for vehicle monitoring even during car movement.

HDH3020R features 1080P(1920x1080) resolution and 30fps image quality. It supports both H.265 and H.264 dual-stream encoding.

HDH3020R features real-time Day/Night switching function. It provides 32X optical zoom and 16X digital zoom with 0.0002Lux @B/W super low illumination. The PTZ camera supports 0°~360° continuous rotation and can be accurate to ±0.1°.

HDSH3020LS features IP67 protection level. Windows are made with optical glass and equipped with wiper.

HDH3020R features 100 meter IR LED illumination night range, and provide powerful light in dark surveillance environment.

Technical Specifications of BIT-HD3020R 1080P 32X Starlight High Speed Network Vehicle PTZ Camera with IR Illuminator

Pan Tilt System
Pan Angle	360° continuous rotation
Tilt Angle	-90° ~ 90°
Pan Speed	0.1° ~ 100°/s
Tilt Speed	0.1° ~ 60°/s
Preset Position	128
Auto Scan	3
Cruising Track	6, each with 16 preset positions
Pattern Tour	3, each with more than 2 min
Protocol/Baudrate	Pelco P/D, 1200/2400/4800/9600/19200
Zero Point Calibration	Support
Guard Location	Support
Power Failure Memory	Support
Video
Image Sensor	1/1.8"progressive scanning CMOS
Image Resolution	Mainstream：50Hz: 25fps(1920×1080,1280×720) 60Hz: 30fps(1920×1080,1280×720) Substream：50Hz: 25fps(720×576,352×288) 60Hz: 30fps(720×480,352×240)
Optical Zoom	32X
Digital Zoom	16X
Focal Length	6～192 mm
Minimum Illumination	Color:0.002Lux (F1.5, AGC ON) B/W:0.0002Lux (F1.5, AGC ON)
Iris	F.15 ~ F4.3
View of Angle	Horizontal 61.2°-2.32°
Shutter Speed	1/25~1/100000s
SNR	55dB
Super Wide Dynamic Range	Super WDR, auto WDR, 1-100 adjustable
Digital Noise Reduction	3D
White Balance	Adjustable
Other Features	Support HLC, area privacy mask, defog, corridor mode etc.
Day/Night	Dual IR filter synchronization switch with image, auto, color, B/W, schedule, threshold control, flip
Local Storage	Support MicroSD, up to 128 G
OSD Menu	Support
IP Specification
Video Compression	H.265 and H.264
Protocol	TCP/IP，HTTP，DHCP，DNS，DDNS，RTP，RTSP，PPPoE，SMTP，NTP，UPnP， FTP， HTTPS
Intelligent Function	Anti-shake DSP, Distortion Correction, Perimeter/line/motion detection
Anomaly Detection	Video mask detection, network failure detection, HDD failure detection, IP conflict detection, HDD full detection
Access	Multiple user's access
ONVIF	ONVIF 2.4 compliant
Electrical
Power supply	AC24V±25%，50/60Hz; DC9~36V for vehicle load type
Power Consumption	≤50W
Mechanical
Dimension( L x W x H mm)	345(L)x190(W)x245(H) mm
Weight	8kg
Material	Aluminum alloy
Installation Method	Indoor, outdoor or vehicle load
Environment
Working Environment	-40°C~60°C 90%RH
Protection Level	IP67

Dimension of BIT-HD3020R 1080P 32X Starlight High Speed Network Vehicle PTZ Camera with IR Illuminator

Unit: mm

FAQs BIT-HD3020-30 1080P 32X Starlight Network Laser Night Vision PTZ Camera

Can Bit-hdh3020r Be Powered With Dc12/24v That Are Commonly Available In Vehicle, But Not Ac24v?

BIT-HDH3020R vehicle load PTZ camera provides two power options: AC24V or DC9-36V for vehicle application.

What Is The Starlight Camera Feature Of The 32x Optical Zoom Camera In Bit-hdh3020r High Speed Vehicle Load Ptz Camera?

Starlight cameras are cameras which have special sensors, which provide improved night vision in low light conditions. It can see things which our naked eyes cannot see. Human eyes cannot identify things when the light level goes below 20 Lux. Starlight Cameras offer clearer and sharper looking image even in 0 Lux conditions, because of the exceptional sensitivity of the starlight sensor.

BIT-HDH3020R network PTZ camera is equipped with 32x optical zoom camera, with super low illumination of color: 0.002Lux, b/w: 0.0002Lux.

Is There Any Other Model With Night View Range More Than 100 Meters Besides Bit-hdh3020r Network Ptz Camera?

BIT-HDH3020R network PTZ camera has laser illuminator option model BIT-HDH3020LS with night view range from 300 meter to 1000 meter. For even longer distance surveillance, please go to our"Long Range Laser Network PTZ Camera"product category for other PTZ camera models.

For Vehicle Installation, Will Bit-hdh3020r Vehicle Load Ptz Camera Come With Any Other Accessories For Normal Operation In Continuous Vibration Situation?

BIT-HDH3020R will come with a anti-shake base made of high quality, durable rubber for vibration reduction.
