18 inch size, outdoor application
Work alone or with pan tilt unit
Aluminum alloy material
Top open design, easy camera installation
Optional sunshield, heater, fan, wiper
IP66 ingress protection
Overview

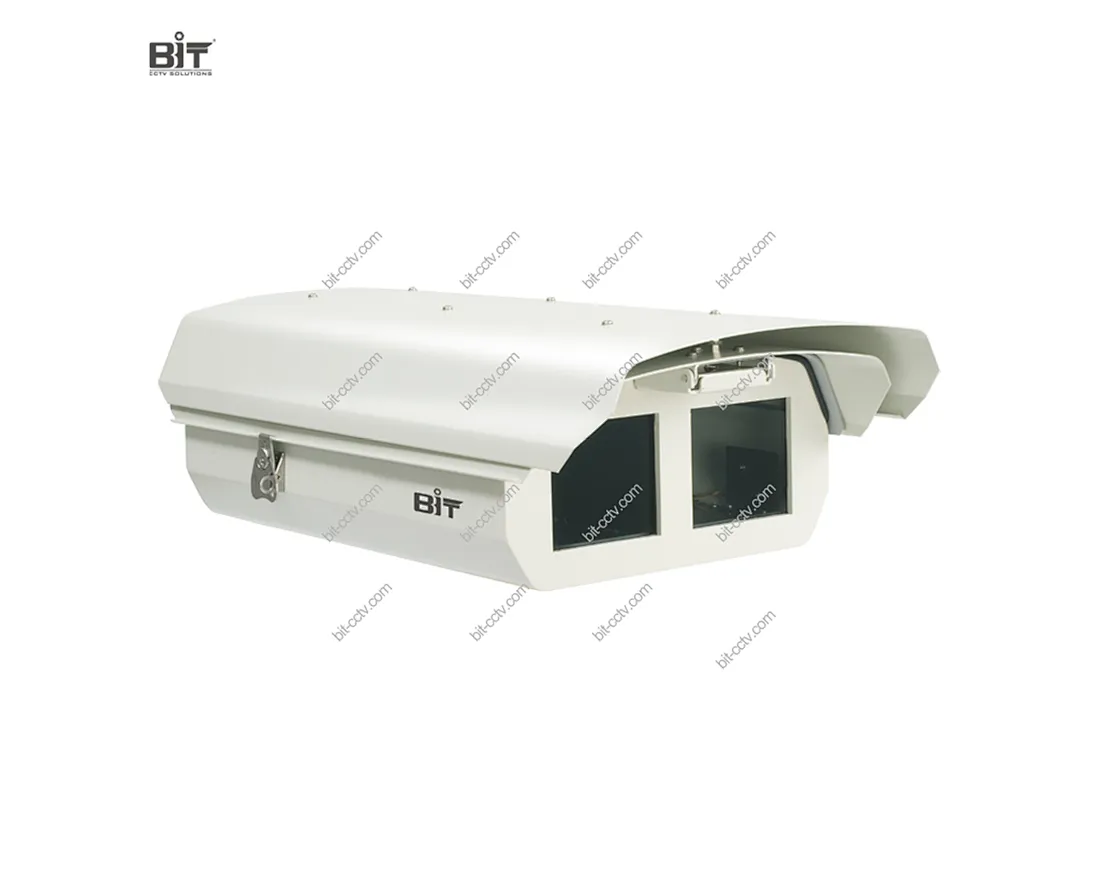

BIT-HS4218 is a large size dual cabin security camera enclosure for multiple devices installation and protection to work alone or to be loaded on medium duty pan tilt unit BIT-PT500 as part of PTZ camera system. Made of aluminum alloy, BIT-HS4218 dual cabin large camera enclosure features IP66 ingress protection for all weather application with support of optional heater, blower fan and wiper.
Technical Specifications
Model | BIT-HS4218 | |||
Housing | ||||
Application | Indoor/Outdoor | |||
Dimensions | 600x 366x185 mm | |||
Left Cabin Space | 280x 108x130 mm | |||
Right Cabin Space | 280x 108x130 mm | |||
Window (W)x(H) | 100x90 mm (3.94x3.54 inch) | |||
General | ||||
Power Supply | AC 24V ± 20% | |||
Power Consumption | ≤65W | |||
Working Temperature | -35ºC ~ 60ºC (-31 ºF ~ 140 ºF ) | |||
Working Humidity | ≤90% RH (No condensing, no heating) | |||
Auto Temperature Control | Heating on: 8ºC(46.4ºF ) ±5, off 20ºC(68ºF ) ±5 | |||
Protection Level | IP66 | |||
Material | Alloy aluminum | |||
Weight | 6.5 kg (14.33 lb) | |||
Order Information | Options | |||
Model | Housing Only | Sunshiled | Heater/Fan | Wiper |
BIT-HS4218 | X | / | / | / |
BIT-HS4218K | X | X | / | / |
BIT-HS4218SHK | X | X | X | / |
BIT-HS4218SHKW | X | X | X | X |
Related Products | ||||
Pan Tilt Positioner | BIT-PT520 | |||
Dimension:
Unit: mm
