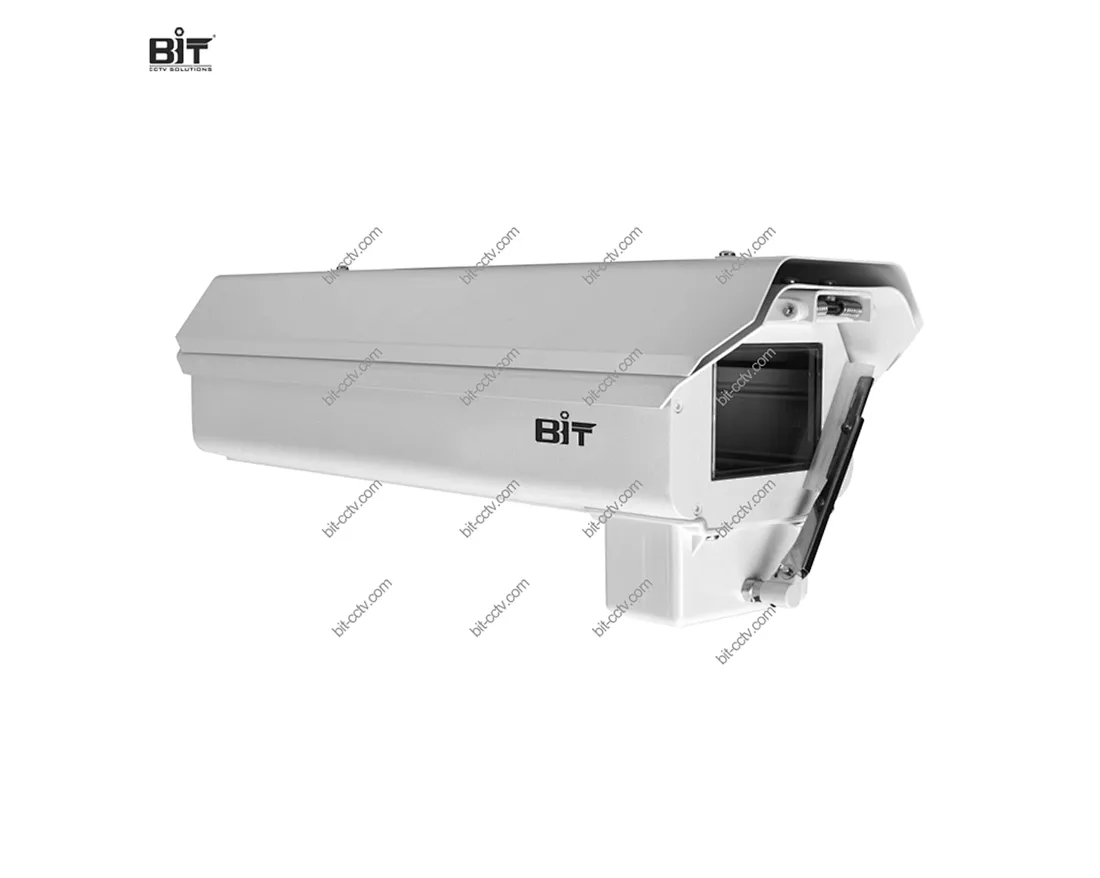

18 inch Outdoor Camera Housing Enclosure

Features of BIT-HS4718 18" Outdoor Medium CCTV Camera Housing & Enclosure

18 or 22 inch size, outdoor application

Work alone or with pan tilt

Aluminum alloy material

Top open design, easy camera installation

Optional sunshield, heater, fan, wiper

IP66 ingress protection

BIT-HS4718 18"

Quantity:

Overview

BIT-HS4718 & BIT-HS4722 camera housings with IP66 protection level are designed for installation of all sort of CCTV cameras or zoom cameras with optional sunshield, heater, blower fan and wiper for 24 hours' surveillance purpose. These housings can also be loaded on medium duty pan tilt head BIT-PT520 for pan tilt positioning system.

Technical Specifications

Model	BIT-HS4718		BIT-HS4722
Housing
Application	Outdoor/Indoor
Dimensions (L)x(W)x(H)	585x189x194 mm 23.03X7.44x7.64 in		640x 189x194 mm 25.20x7.44x7.64 in
Internal Space (L)x(W)x(H)	280x 125x104 mm 11.02x4.92x4.09 in		370x125x104 mm 14.57x4.92x4.09 in
Window (W)x(H)	102x89 mm 4.02x3.50 in		67x57 mm 2.64x2.24 in
General
Power Supply	AC 24V ± 10%
Power Consumption	≤50W
Working Temperature	-35ºC ~ 60ºC (-31 ºF ~ 140 ºF )
Auto Temperature Control	Heating on: 8ºC(46.4ºF ) ±5, off 20ºC(68ºF ) ±5 Fan on: 37º(98.6ºF )C ±5, off 20ºC(68ºF ) ±5
Working Humidity	≤90% RH (No condensing, no heating)
Protection Level	IP66
Material	Alloy aluminum
Weight	5.0kg (11.02lb)		5.5kg (12.13lb)

Order Information	Options
Model	Housing Only	Sunshiled	Heater/Fan	Wiper
BIT-HS4718/4722	X	/	/	/
BIT-HS4718K/4722K	X	X	/	/
BIT-HS4718SHK/4722SHK	X	X	X	/
BIT-HS4718SHKW/4722SHKW	X	X	X	X

Related Products
Pan Tilt	BIT-PT520
Wallmount Bracket	BIT-WS2770+BIT-WS871
Polemount Bracket	BIT-WS2770 + BIT-WS871 + BIT-WS2720

Dimension:

BIT-HS4718 & BIT-HS4722 camera housings with IP66 protection level are designed for installation of all sort of CCTV Unit: mm
