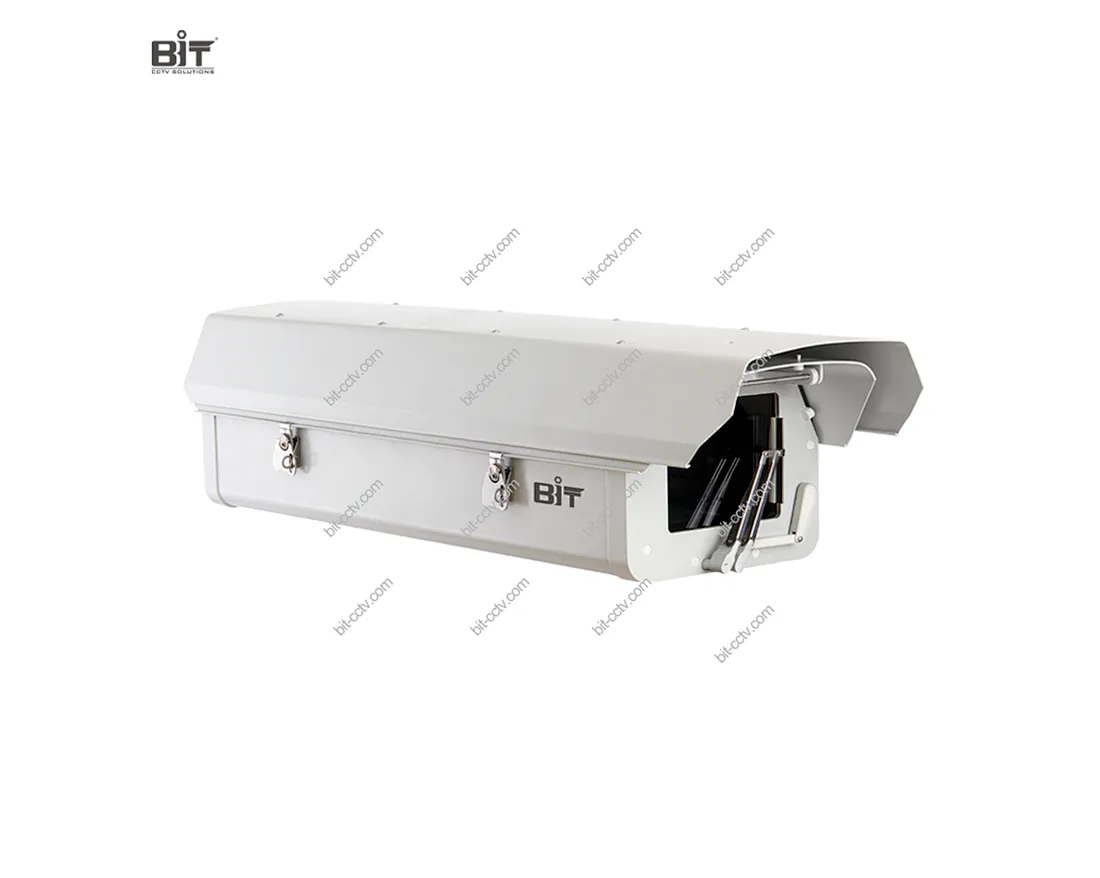

23 inch Outdoor Camera Housing Enclosure

Features of BIT-HS4823 23" Outdoor Large CCTV Camera Housing & Enclosure

23 or 29 inch, outdoor application

Work alone or with pan tilt

Aluminum alloy material

Top open design, easy camera installation

Optional sunshield, heater, fan, wiper

IP66 ingress protection

BIT-HS4823 23"

Quantity:

Overview

BIT-HS4823 & BIT-HS4829 are large size outdoor CCTV camera enclosures suitable for network camera and long focal-length lens for outdoor application especially to work with medium/heavy duty pan tilt head BIT-PT520/850 as part of the PTZ camera system. With the support of optional heater, blower fan, and wiper, they are very good choice for long range video surveillance.

Technical Specifications

Model	BIT-HS4823		BIT-HS4829
Housing
Application	Outdoor/Indoor
Dimensions (L)x(W)x(H)	740x235x190 mm 29.13x9.25x7.48 in		893x 235x190 mm 35.16x9.25x7.48 in
Internal Space (L)x(W)x(H)	400x140x125 mm 15.74x5.51x4.92 in		550x140x125 mm 21.65x5.51x4.92 in
Window (W)x(H)	134x108 mm 5.28x4.25 in		134x108 mm 5.28x4.25 in
General
Power Supply	AC 24V ± 10%
Power Consumption	Heating:36W( 24V); Fan: 8W(24V);Wiper: 5W(220V)
Working Temperature	-35ºC ~ 60ºC (-31 ºF ~ 140 ºF )
Auto Temperature Control	Heating on: 8ºC(46.4ºF ) ±5, off 20ºC(68ºF ) ±5 Fan on: 37º(98.6ºF )C ±5, off 20ºC(68ºF ) ±5
Working Humidity	≤90% RH (No condensing, no heating)
Protection Level	IP66
Material	Alloy aluminum
Weight	6.5kg (14.33 lb)		7.0kg (15.43 lb)
Order Information	Options
Model	Housing Only	Sunshiled	Heater/Fan	Wiper
BIT-HS4823/4829	X	/	/	/
BIT-HS4823K/4829K	X	X	/	/
BIT-HS4823SHK/4829SHK	X	X	X	/
BIT-HS4823SHKW/4829SHKW	X	X	X	X
Related Products
Pan Tilt Head	BIT-PT520, BIT-PT850

Dimension:

BIT-HS4823 & BIT-HS4829 are large size outdoor CCTV camera enclosures suitable for network camera

Unit: mm
