6km Long Range Night Vision Laser Network PTZ Camera
Features of BIT-RC20100W Long Range HD Network Laser Night Vision PTZ Camera
6km day/3km night long range 24 hour surveillance
1080P HD network camera, 0.0002lux color to B/W
16.7~1000mm lens, motorized zoom, auto focus
15W, 808nm NIR military laser illuminator
360 continuous pan rotation, tilt angle: -45°~+45°
Pan: 0.01°/s-30°/s , tilt: 0.01°/s-15°/s rotation speed
Support absolute control, coordinate display, preset, cruising and scan
Die-cast aluminum alloy housing
IP66 ingress protection
6km day/3km night long range 24 hour surveillance
1080P HD network camera, 0.0002lux color to B/W
16.7~1000mm lens, motorized zoom, auto focus
15W, 808nm NIR military laser illuminator
360 continuous pan rotation, tilt angle: -45°~+45°
Pan: 0.01°/s-30°/s , tilt: 0.01°/s-15°/s rotation speed
Support absolute control, coordinate display, preset, cruising and scan
Die-cast aluminum alloy housing
IP66 ingress protection
BIT-RC20100W
Quantity:
Overview of BIT-RC20100W Long Range HD Network Laser Night Vision PTZ Camera
BIT-RC20100W, a 6km long range night vision laser network PTZ camera is designed for 24 hour monitoring at all-weather condition. With super homogeneous NIR laser and low illumination megapixel telephoto lens, its max detection distance for object is 6km at day and 3km at night.
It features built-in industrial grade embedded control electronic system, HD network camera operation like zoom, focus, video switch and pan tilt rotation is stable and accurate. One integral aluminum alloy housing features weatherproof IP66 to make sure its great performance outdoor.
Application Scenario: Applicable in large-scenarios, such as: smart city, high-spot watching, mobile&traffic, railway&freeway, prison, harbor, maritime, plant, oil fields, electricity, public security and fire-fighting, forest fire prevention, scenic sights and etc.
Technical Specifications of BIT-RC20100W Long Range HD Network Laser Night Vision PTZ Camera
Model | BIT-RC20100W | |
Detection Range | Day:6km/Night:3km | |
Consumption | 15W, 808nm Military NIR | |
Laser Angle | 0.3°～20° | |
Angle & Distance Matching Technology | 1. DSS digital stepper illumination angle control, advanced laser angle and distance match technology, min 0.1° follow-up zoom | |
2. GHT-II super homogenizing HD illumination technology | ||
3. 0.01°SLM optical axis aiming and lock | ||
Camera | 1/1.8'' CMOS | |
0.0002lux high sensitive color to B/W | ||
2MP, 1920*1080, Automatic ICR switch | ||
H.264/MPEG4/MIPEG video format, support dual stream | ||
Video bitrate 32Kbps~16Mbps, 60Hz30 frame/S | ||
Support SD card storage | ||
Photo Cell Control | Control mode: independent photosensitive control circuit, precise synchronous switch laser and day/night | |
Lens | 16.7-1000mm | |
F2.8~16 | ||
FOV: (H)23°～0.4° | ||
MOD:10M | ||
HD infrared correction, same focus at day and night | ||
Motorized /manual zoom, DC 8~12V, auto IRIS,DC5V | ||
Fog Penetration | AFR enhanced image processing technology (fog filter optional) | |
LPR (optional) | Avoid strong light for license plate recognition | |
Housing | 1. Material: Die-cast aluminum alloy housing, sealed and waterproof | |
2. Structure: double window design | ||
3. Surface treatment: PTA three-resistance coating, anti corrosion(optional) | ||
4.Weather proof: IP66, waterproof, dustproof | ||
5.Connector: Aviation water-proof connector | ||
PT | Pan: 360° continuous rotation，tilt: +45°～-45° | |
Rotation speed: Pan: 0.01°～30°/S, tilt: 0.01°～15°/S | ||
Positioning accuracy: 0.1° | ||
Advanced movement: 200 preset positions, cruising track, pattern tour and auto scan | ||
Support coordinate query/feedback and absolute control | ||
Interface | 1*RJ45，1*AC/DC 24V | |
Optional: Reserve RC422/485 and BNC, connect with radar, GIS or others | ||
Military aviation water-proof connector | ||
Protocol | 1. TCP/IP、HTTP、DHCP、DNS、DDNS、RTP and so on 2. Support Onvif 2.4 2. P/T control protocol: Pelco-P/Pelco-D Baud rate: 2400、4800、9600、19200(optional) | |
Power supply | AC/DC 24V±10%，50Hz，150W， AC220V->AC24V adapter (DC12V for option) | |
Working Environment | 1. Working temperature: -25℃～+55℃ (-40℃ optional) 2. Storage temperature:-35℃～+65℃ 3. Working humidity:<90% 4. Anti-shake 5.Anti-shock 6.IP66 ingress protection | |
Weight | ≤45kg | |

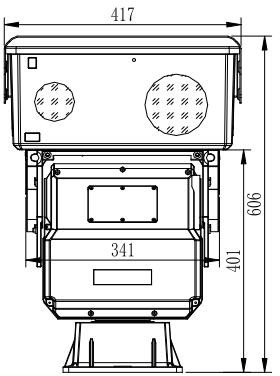

Dimension of BIT-RC20100W Long Range HD Network Laser Night Vision PTZ Camera
Unit: mm
FAQs of BIT-RC20100W Long Range HD Network Laser Night Vision PTZ Camera
What Accessories Will Be Provided Together With Laser Night Vision PTZ Camera BIT-RC20100W?
One pc of composite cable (Length as required) and a high quality power supply (AC24V or DC24V as required) will be packed together with laser network PTZ camera BIT-RC20100W.
What Is The Warranty Term Of Long Range Laser Network PTZ Camera BIT-RC20100W？
Standard 1 year warranty and life maintenance for BIT-RC20100 laser network PTZ camera.
What Is The Packing Of Laser Night Vision PTZ Camera BIT-RC20100W?
BIT-RC20100W long range network PTZ camera and its accessories are packed in wooden case, custom suffocating free.
Does BIT-RC20100W Night Vision Long Range PTZ Camera Support Local Video Storage?
Yes, local video storage supported with SD card inside network camera in long range network PTZ camera BIT-RC20100W.
