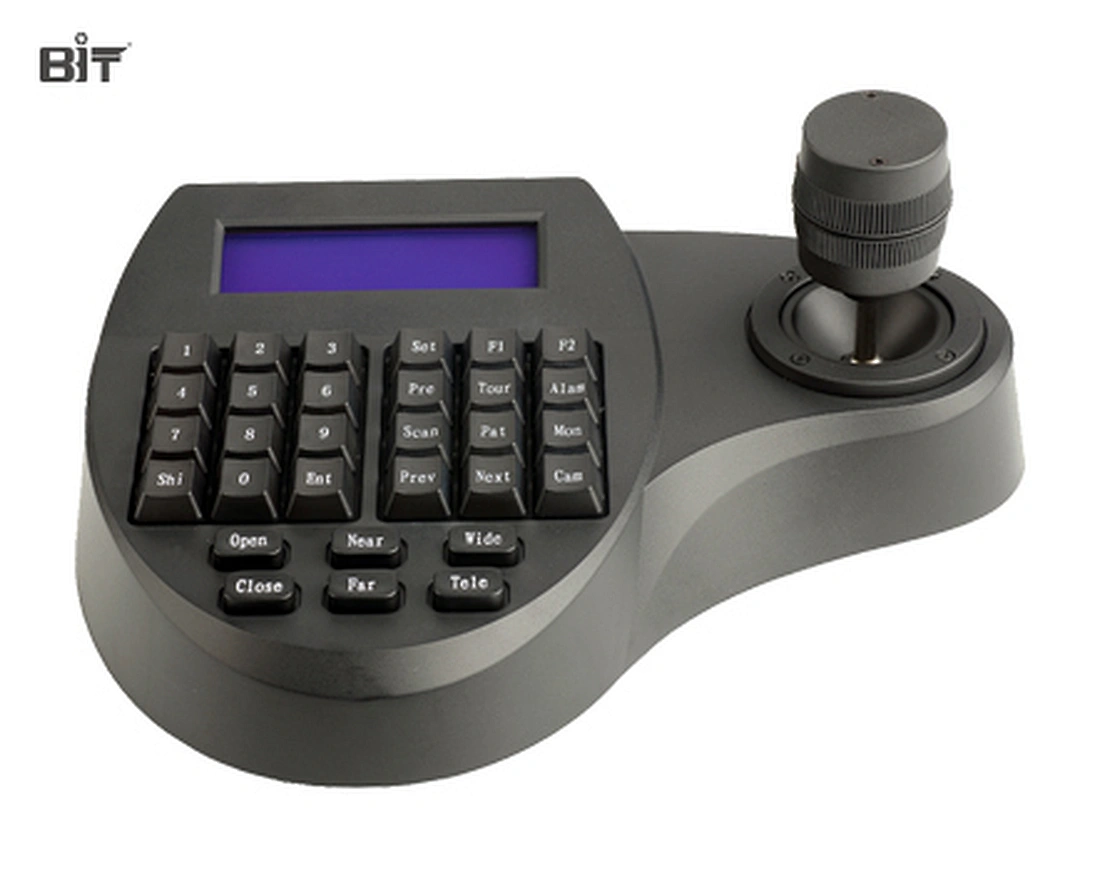

BIT-K7203 PTZ Keyboard Controller
Features of BIT-K7203 PTZ Keyboard Controller
Mini Smaller Keyboard, Controllable speed of Pan/Tilt and Zoom In/Out;
Built-In Pelco P/D Protocol;
Selectable Baud Rate;
4 sets Keyboard cascade connection, Max controllable 128pcs devices
Power Consumption:4.2W;
Work voltage: DC(9~12V)±10%;
Working Temperature:-20°~+50°
OSD Menu, Display Address/Protocol/Baud Rate/ Minitor ID/Joystick Status etc;
Universal 3D Joystick;
Mini Smaller Keyboard, Controllable speed of Pan/Tilt and Zoom In/Out;
Built-In Pelco P/D Protocol;
Selectable Baud Rate;
4 sets Keyboard cascade connection, Max controllable 128pcs devices
Power Consumption:4.2W;
Work voltage: DC(9~12V)±10%;
Working Temperature:-20°~+50°
OSD Menu, Display Address/Protocol/Baud Rate/ Minitor ID/Joystick Status etc;
Universal 3D Joystick;
BIT-K7203
Quantity:
Specifications of BIT-K7203 PTZ Keyboard Controller
Model No. | BIT-K7203 |
Communication | RS232,RS485 |
Distance | Max. transmitting distance 1200m |
Baud rate | 2400bps,4800bps,9600bps,19200bps |
Protocol | PELCO P/D |
Power supply | DC( 9V～12V)±10% |
Electric current | 350mA |
Power consumption | 4.2W |
Standby consumption | 1W |
Environment temperature | -20℃ ~ +50℃ |
Humidity | 0~95%(Non-condensation) |
Dimension | 181(L)*219(W)*97(H)mm |
Net weight | 1.3Kg |
Dimension of BIT-K7203 PTZ Keyboard Controller
Unit: mm
