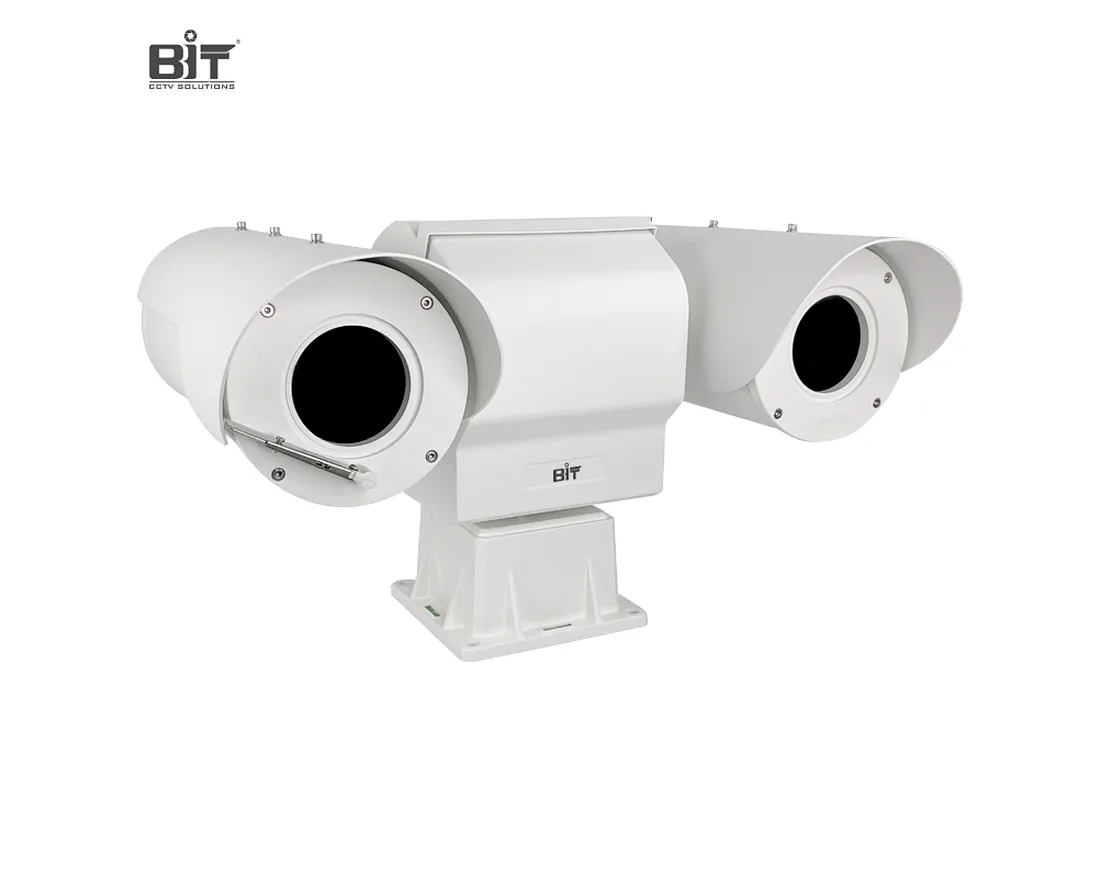

BIT-PT330 Outdoor High Precision Medium Duty Pan Tilt with Side Housings

BIT-PT330 Outdoor High Precision Medium Duty Pan Tilt with Side Housings

Features of BIT-PT330 Outdoor High Precision Medium Duty Pan Tilt with Side Housings

· Outdoor use, two side load housings for customization
· Pan angle: 0-360°, tilt angle: -75°~-+40°
· Pan speed 0.1~60°/s, tilt speed 0.1~30°/s
· Preset accuracy: ±0.1°
· High precision stepper motor and worm gear drive transmission
· Self-lock with memory after power failure, strong wind-resistance
· Support coordinate feedback and absolute control
· Support lens preset, adaptive speed to zoom rate
· Support analogue camera or network camera
· Rated IP66 for dust and water ingress

Note: BIT-PT330L does not include any cameras inside housings.

BIT-PT330

Quantity:

Overview of BIT-PT330 Outdoor High Precision Medium Duty Pan Tilt with Side Housings

BIT-PT330L is a variable speed, worm/gear drive medium duty pan tilt unit with large size housigns on two sides for outdoor application. With 360°endless pan rotation and tilt -75°~-+40°angle, BIT-PT330L provide a wide angle video surveillance with ±0.1 positioning accuracy. Many advanced features are available: preset, auto scan, self-lock, absolute control. It support either analogue camera or network IP camera application. Customization and OEM service is available.

Technical Specifications of BIT-PT330 Outdoor High Precision Medium Duty Pan Tilt with Side Housings

Model	BIT-PT330
Load Type	Indoor/outdoor, two side housings
Rotation Angle	Pan: continuous 360° Tilt: -75°~+40°
Rotation Speed	Pan: 0.1°/s-60°/s Tilt: 0.1°/s-30°/s
Programmable Presets	200
Preset Accuracy	± 0.1°
Cruising Track	1
Auto Scan	1
Coordinate Feedback	Support angle query feedback/real-time feedback (optional)
Absolute Control	Support
Lens Preset	Support
Lens Control Speed	Continuously adjustable zoom, focus speed
Adaptive PT Speed to Zoom	Speed up while zooming out, slow down while zooming in
Guard Location	Support with 1 preset or 1 cruising track or 1 auto scan
Power Failure Memory	Support, recover to PT position, scan/preset/cruising track movement before power failure
Power Failure Memory
Self-lock	Support
Protocol	Pelco P/D
Baud Rate	2400/4800/9600/19200 bps
Communication Interface	RS485 (Optional RS422) or RJ45
Transmission	Worm gear transmission
General
Operating Voltage	AC24V±20 %, 50/60Hz or DC24V±10 %
Power Consumption	≤90W (With heater）
Working Temperature ( with heater)	-40ºC～+70 ºC (-40 ºF ~ 158 ºF)
Working Humidity	90±5% RH
Storage Temperature	-40 ºC～+70 ºC (-40 ºF ~ 158 ºF )
Protection Level	IP66
Material	Aluminium Alloy
Weight	15kg (33.07lb)
Dimension（L×W×H）	440×340×320mm（17.32x13.38x12.6in）

Dimension of BIT-PT330 Outdoor High Precision Medium Duty Pan Tilt with Side Housings

Unit: mm

FAQs of BIT-PT330L Outdoor Pole Mount Bracket for Pan Tilt Head

What is MTBF (Mean Time Between Failure) of BIT-PT330L medium duty pan tilt unit with housings?

Approximately 10,000 hours MTBF for BIT-PT330L medium duty motorized pan tilt, and it is the result after a long time continuous outdoor test in all weather condition.

What tests have you done on BIT-PT330L medium duty pan tilt to make sure its long time outdoor application?

Many strict tests have been done on BIT-PT330L medium duty pan tilt unit including vibration test, salt spray test, waterproof test, low/high temperature test, and electromagnetic test, etc.

How is BIT-PT330L medium duty pan tilt positioner packed for long distance international transportation?

BIT-PT330L pan tilt unit is packed with solid double corrugated cartons to avoid damage during transportation and handling.

Is mounting bracket available for BIT-PT330L medium duty pan tilt positioner with housing?

Yes, standard wall mounting and cornor mounting brackets are available in our mounting bracket products category.
