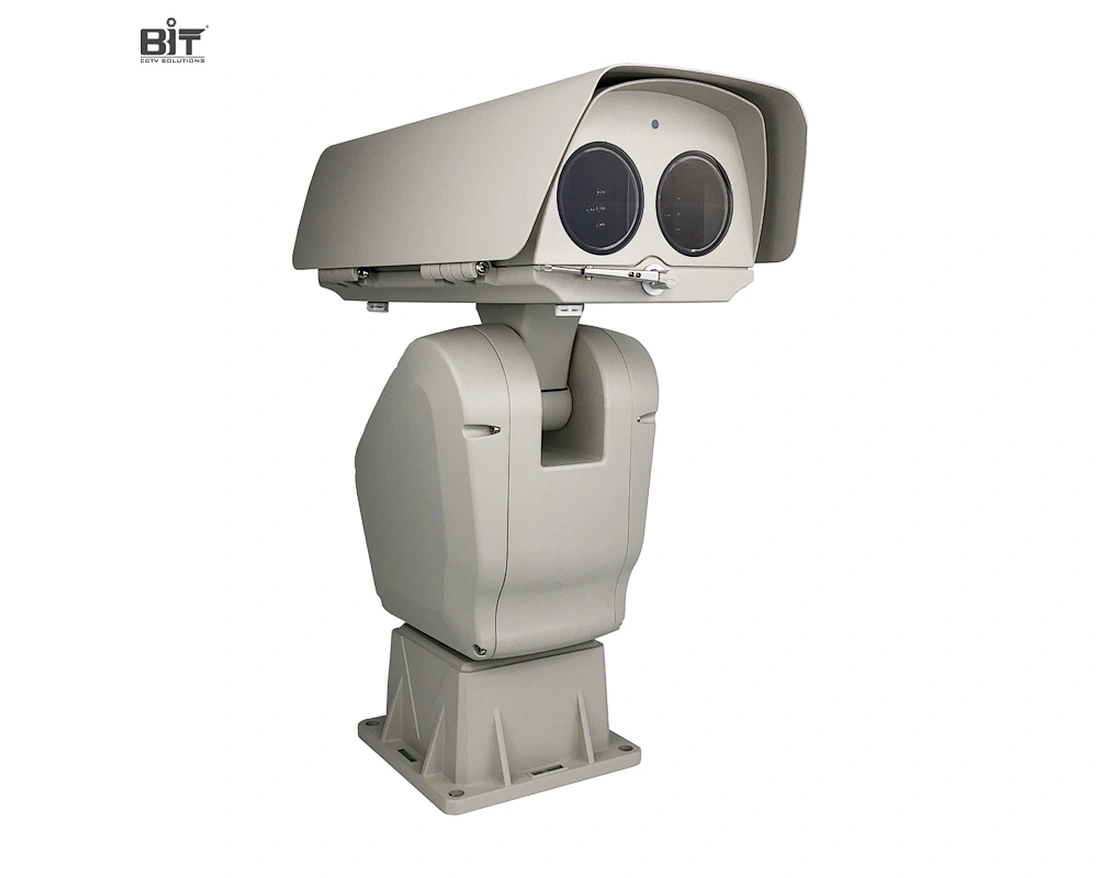

BIT-PT410HS Outdoor High Speed Light Duty Pan Tilt With Top Housing

BIT-PT410HS Outdoor High Speed Light Duty Pan Tilt With Top Housing

Features of BIT-PT410HS Outdoor High Speed Light Duty Pan Tilt With Top Housing

· Outdoor use, top load housings for customization
· Pan angle: 0-360°, tilt angle: -90°~-+40°
· Pan speed 0.01~100°/s, tilt speed 0.01~40°/s
· Preset accuracy: ±0.1°
· High precision stepper motor and worm/gear transmission
· Self-lock with memory after power failure, strong wind-resistance
· Support coordinate feedback and control
· Support lens preset, adaptive speed to zoom rate
· Rated IP66 for dust and water ingress
· Note: BIT-PT410HS does not include any cameras inside housings.

BIT-PT410HS

Quantity:

Overview of BIT-PT410HS Outdoor High Speed Light Duty Pan Tilt With Top Housing

BIT-PT410HS, is a high speed light duty pan tilt unit with top housing, with one or two camera cabin options. With strong stepper motor and worm gear transmission, its maximum rotation speed is up to 100°/s. It also features wide -90°~-+40°tilt rotation angle, preset, auto scan, angle feedback and self-lock. Users can easily integrate their own cameras to build their own PTZ camera.

Technical Specifications of BIT-PT410HS Outdoor High Speed Light Duty Pan Tilt With Top Housing

Model	BIT-PT410HS
Load Type	Indoor/outdoor, top load housing
Rotation Angle	Pan: continuous 360° Tilt: -90°~+40°
Rotation Speed	Pan: 0.01°/s-100°/s Tilt: 0.01°/s-40°/s
Preset Accuracy	± 0.1°
Programmable Presets	200
Cruising Track	8, each with 32 preset positions
Scan	Support with cruising/auto/panoramic/tilt scan
Coordinate Feedback	Support angle query feedback by RS485/optional real-time feedback by RS422
Absolute Control	Support
Lens Preset	Support
Lens Control Speed	Continuously adjustable zoom, focus speed
Adaptive PT Speed to Zoom	Speed up while zooming out, slow down while zooming in
Guard Location	Support with 1 preset or 1 cruising track or 1 auto scan
Power Failure Memory	Support, recover to PT position, scan/preset/cruising track movement before power failure
Power Failure Memory
Self-lock	Support
Protocol	Pelco P/D
Baud Rate	2400/4800/9600/19200 bps
Communication Interface	RS485 or RJ45 (Network configuration)
Transmission	Worm gear transmission
General
Operating Voltage	AC24V±20 %, 50/60Hz or DC24V±10 %
Power Consumption	≤70W (With heater）
Working Temperature ( with heater)	-40ºC～+65 ºC (-40 ºF ~ 149 ºF )
Working Humidity	90±5% RH
Storage Temperature	-40 ºC～+70 ºC (-40 ºF ~ 158 ºF)
Protection Level	IP66
Material	Aluminium Alloy
Weight	12kg (26.45lb)
Dimension（L×W×H）	214×213×360mm (8.42x8.38x14.17in )

Dimension of BIT-PT410HS Outdoor Wall Mount Bracket for Pan Tilt Head

Unit: mm

FAQs of BIT-PT410HS Outdoor Wall Mount Bracket for Pan Tilt Head

Does BIT-PT410HS light duty pan tilt positioner support analogue camera or network IP camera?

BIT-PT410HS can support either analogue or network IP camera, but not both. Please let us know which you will use while placing order with us.

What is the material of the wiper blade on BIT-PT410HS light duty pan tilt unit with top housing?

The wiper blade on BIT-PT410HS pan tilt unit is made of high quality silicon.

What is the color of BIT-PT410HS light duty pan tilt with housing?

Default light beige or white color

Is there camera option for BIT-PT410HS pan tilt head positioner with housing?

Yes, please go to our “PTZ Camera” products category for BIT-PT410HS-32 with network IP camera.
