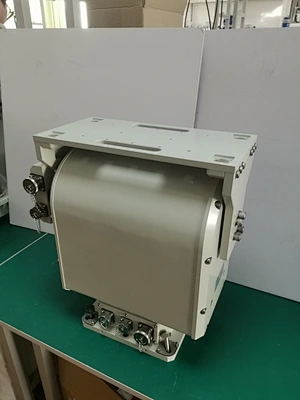

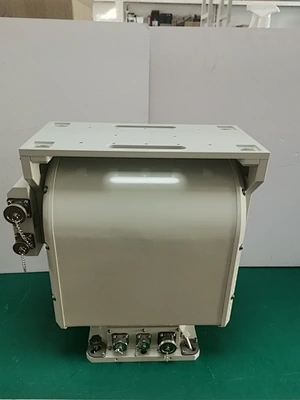

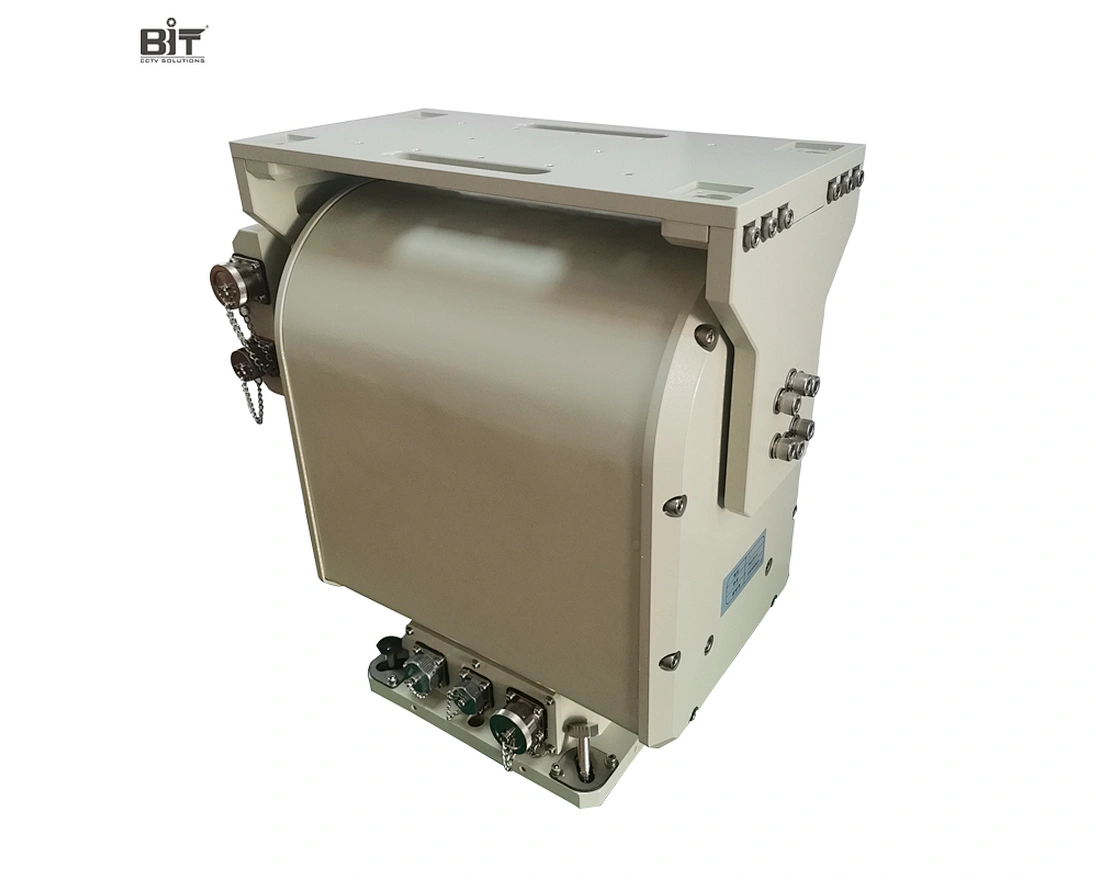

BIT-PT8120 120kg Load Multi-functional Military Level Heavy Duty Pan Tilt Unit Positioner
Features of BIT-PT8120 120kg Load Multi-functional Military Level Heavy Duty Pan Tilt Unit Positioner
Maximum top load capacity 120kg (264.55lb)
Pan angle: continuous 360°, tilt angle: -45°~-+45°
Pan speed 0.02°/s~5°/s, tilt speed 0.02°/s~5°/s
Preset positioning accuracy: ±0.1°
Double pitch worm and gear driving, electronic image stabilization and anti-loose design, self-lock after power failure, strong wind resistance, high stability
256 subdivision design, smooth rotation at low speed
Whole structure with PTA three-proofing coating, key component sealed with pure nitrogen
Aviation circular connector design, easy for installation and maintenance.
Self-lock with memory after power failure, strong wind-resistance
RS485/RS422 control with Pelco P/D protocol
Support position feedback and absolute control
Anti-corrosion surface treatment and coating
Rated IP66 for dust and water ingress
Maximum top load capacity 120kg (264.55lb)
Pan angle: continuous 360°, tilt angle: -45°~-+45°
Pan speed 0.02°/s~5°/s, tilt speed 0.02°/s~5°/s
Preset positioning accuracy: ±0.1°
Double pitch worm and gear driving, electronic image stabilization and anti-loose design, self-lock after power failure, strong wind resistance, high stability
256 subdivision design, smooth rotation at low speed
Whole structure with PTA three-proofing coating, key component sealed with pure nitrogen
Aviation circular connector design, easy for installation and maintenance.
Self-lock with memory after power failure, strong wind-resistance
RS485/RS422 control with Pelco P/D protocol
Support position feedback and absolute control
Anti-corrosion surface treatment and coating
Rated IP66 for dust and water ingress
BIT-PT8120
Quantity:
Overview of BIT-PT8120 120kg Load Multi-functional Military Level Heavy Duty Pan Tilt Unit Positioner
BIT-PT8120 is a large size,military level, multi-functional heavy duty pan tilt head positioner with load capacity up to 120kg (264.55lb). Powered with DC24V and equipped with double pitch worm and gear, it features a minimum speed of 0.02°/s, electronic image stabilization, anti-loose technology, self-lock to make sure smooth and stable view for a long range surveillance. With IP66 ingress protection design and corrosion resistance surface treatment and coating, PT8120 is a good choice for application in corrosive environment like the coast.
Technical Specifications of BIT-PT8120 120kg Load Multi-functional Military Level Heavy Duty Pan Tilt Unit Positioner
Model | BIT-PT8120 |
Max. Load Capacity | 120kg (264.55lb) |
Load Type | Outdoor, top load |
Pan Angle | Continuous 360° |
Tilt Angle | +45°～-45° |
Rotation Speed | Pan: 0.02°/s~5°/s Tilt: 0.02°/s~5°/s |
Preset Accuracy | ± 0.1° |
Programmable Presets | 255 |
Cruising Track | 2, each with 40 presets |
Scan | 1 |
Position Feedback | Support, position query feedback (default)/real-time feedback |
Absolute Control | Support with Pelco D extended commands set |
Guard Location | Support with1 preset or 1 cruising track or 1 auto scan |
Power Failure Memory | Support, recover to PT position, scan/preset/cruising track movement before power failure |
Self-lock | Support |
Protocol | Pelco P/D |
Baud Rate | 2400/4800/9600/19200 bps |
Communication Interface | RS485 (Optional RS422) |
Transmission | Worm gear transmission |
Default Wiring/Interface | |
Pan Tilt Base | 100M Ethernet with RJ45 (4 wire, pass-through), 48V DC (2 wire), GND |
Pan Tilt Top | 100M Ethernet with RJ45 (4 wire, pass-through), RS485 P/T control (2 wire) 12V DC (2 wire), 24V AC/DC (2 wire), GND |
General | |
Operating Voltage | DC24V±10% |
Power Consumption | ≤200W |
Working Temperature | -30ºC～+65 ºC (-40 ºF ~ 149 ºF) |
Working Humidity | 90±5% RH |
Storage Temperature | -40 ºC～+70 ºC (-40 ºF ~ 158 ºF) |
Protection Level | IP66 |
Material | Aluminium Alloy |
Weight | 33kg |
Dimension (L×W×H) | 380×220×400mm |
Dimension of BIT-PT8120 120kg Load Multi-functional Military Level Heavy Duty Pan Tilt Unit Positioner
Unit: mm
