BIT-PT850 Heavy Duty Pan Tilt Head with Payload up to 50kg

BIT-PT850 Outdoor Variable Speed Heavy Duty Pan Tilt Head with Payload up to 50kg (110.23lb)

Features of BIT-PT850 Outdoor Variable Speed Heavy Duty Pan Tilt Head with Payload up to 50kg (110.23lb)

· Maximum top load capacity 50kg (110.23lb)
· Pan angle: 0-360°, tilt angle: -45°~-+45°
· Pan speed 0.1~30°/s, tilt speed 0.1~15°/s
· Preset accuracy: ±0.1°
· High precision stepper motor and worm gear drive transmission, electronic anti-shake
· Self-lock with memory after power failure, strong wind resistance
· RS485 or RS422 pan tilt control with Pelco P/D protocol
· Support position feedback and absolute position
· Anti-corrosion surface treatment
· Rated IP66 for dust and water ingress protection

BIT-PT850

Quantity:

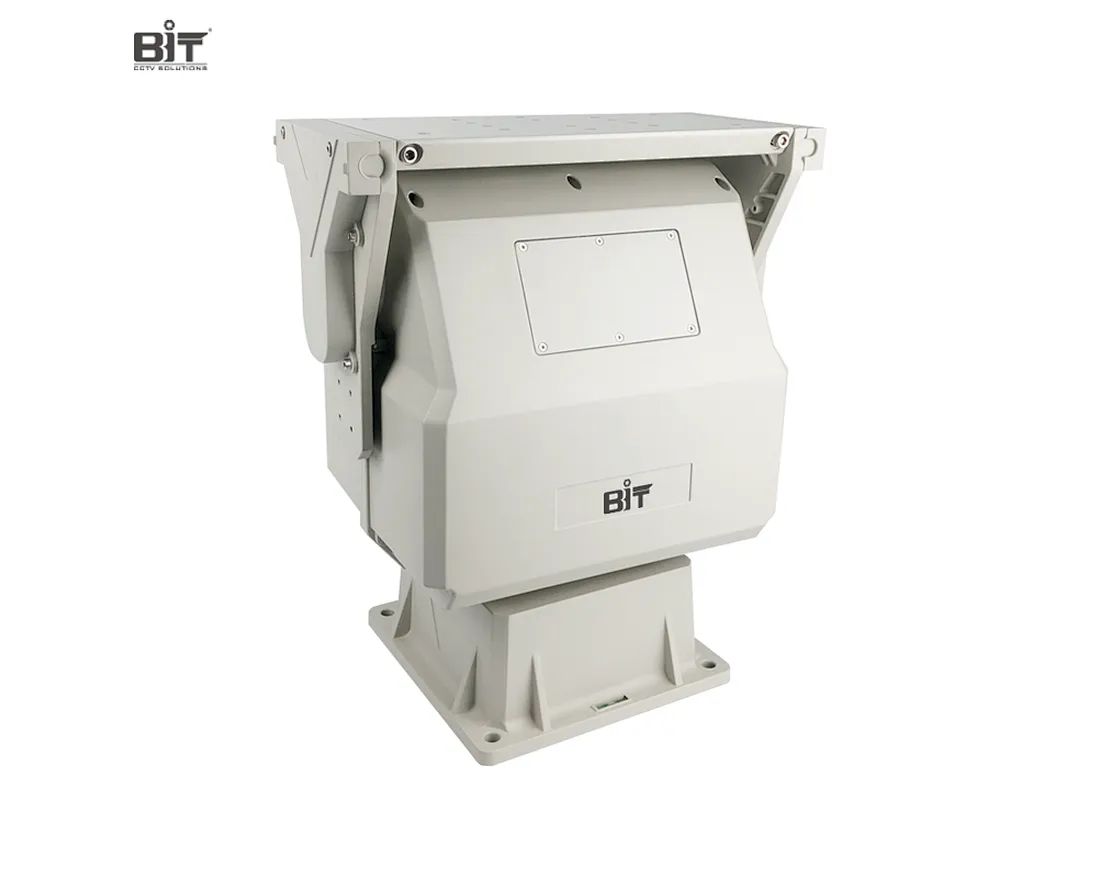

Heavy Duty Pan Tilt Head--BIT-PT850

The BIT-PT850 heavy-duty pan-tilt unit is a robust and sizable pan-tilt mechanism capable of accommodating a load of up to 50kg (110.23lb). It operates on self-adaptive AC/DC24V power. With compatibility for the Pelco protocol and an RS485 interface, it can be seamlessly controlled by cameras under load or a joystick controller. Crafted from durable die-cast aluminum alloy and featuring additional corrosion-resistant surface treatment, this unit boasts an IP66 ingress protection rating. It's the perfect choice for long-range pan-tilt-zoom positioning systems, particularly in critical areas such as airports, seaports, military installations, as well as urban and border security applications.

Technical Specifications of BIT-PT850 Heavy Duty Pan Tilt Head

Model	BIT-PT850
Max. Load Capacity	50kg (110.23lb), top load
Load Type	Indoor/outdoor, top load
Pan Angle	Pan: continuous 360°
Tilt Angle	+45°～-45°(load capacity 50kg) Default
	-60°～+60°(load capacity 40kg)
	-80°～+80°(load capacity 26kg)
Rotation Speed	Pan: 0.01°/s-30°/s Tilt: 0.01°/s-15°/s
Programmable Presets	200
Preset Accuracy	± 0.1°
Cruising Track	8
Scan	8
Coordinate Feedback	Support angle query feedback or real-time feedback
Absolute Control	Support
Lens Preset	Support
Lens Control Speed	Continuously adjustable zoom, focus speed
Adaptive PT Speed to Zoom	Speed up while zooming out, slow down while zooming in
Guard Location	Support with 1 preset or 1 cruising track or 1 auto scan
Power Failure Memory	Support, recover to PT position, scan/preset/cruising track movement before power failure
Power Failure Memory
Self-lock	Support
Protocol	Pelco P/D
Baud Rate	2400/4800/9600/19200 bps
Communication Interface	RS485 (Optional RS422) or RJ45
Transmission	Worm gear transmission
Wiring/Interface
Pan Tilt Base	100M Ethernet with RJ45 (4 wire, pass-through), 24V AC/DC (2 wire), GND
Pan Tilt Top	100M Ethernet with RJ45 (4 wire, pass-through), RS485 P/T control (2 wire) 12V DC (2 wire), 24V AC/DC (2 wire), GND
General
Operating Voltage	AC24V±25 %, 50/60Hz or DC24V±10 %
Power Consumption	≤100W (With heater）
Working Temperature	-40ºC～+60 ºC (-40 ºF ~ 140 ºF)
Working Humidity	90±5% RH
Storage Temperature	-40 ºC～+70 ºC (-40 ºF ~ 158 ºF)
Protection Level	IP66
Material	Aluminium Alloy
Weight	23kg (50.7lb)
Dimension (L×W×H)	224×341×403mm (8.81x12.42x15.864in)

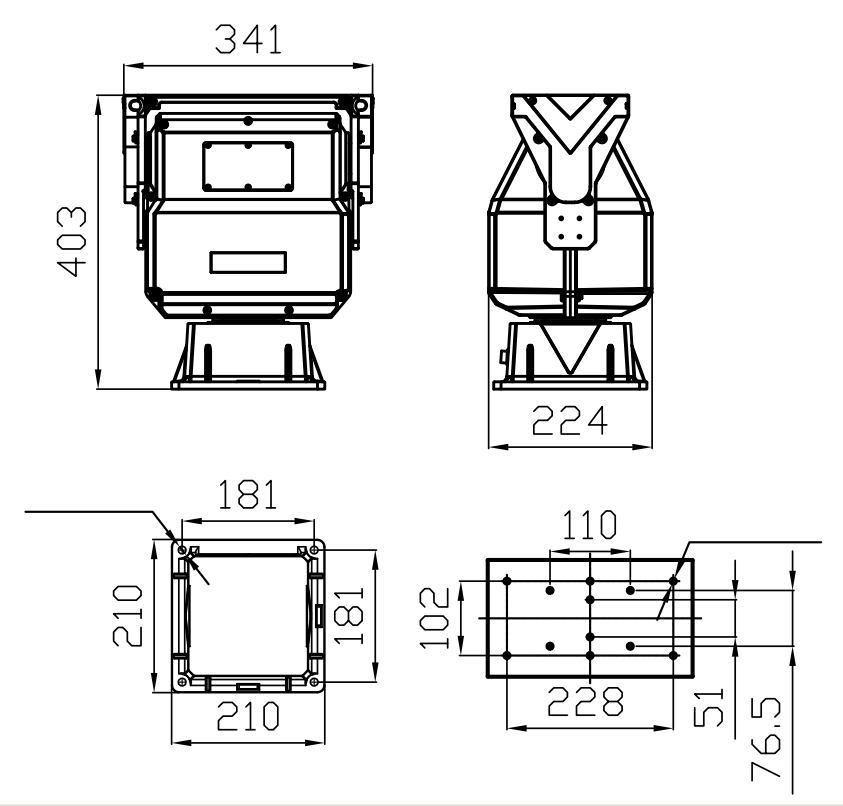

Dimension of BIT-PT850 Outdoor Variable Speed Heavy Duty Pan Tilt Head

Unit: mm

FAQs of BIT-PT850 Heavy Duty Pan Tilt Head

What are the default control protocol, address and baudrate of BIT-PT850 heavy duty pan tilt head positioner?

Default as, Pelco D, address: 1, baurate: 9600.
Please follow user’s manual and change them on the switch panel on the pan tilt body after removing the cover.

What is IP rating and “IP66 ingress protection” in BIT-PT850 heavy duty pan tilt unit features?

IP rating is also known as Ingress Protection or International Protection ratings are defined to the international standard of EN 60529 (British BS EN 60529:1992). This standard is used to define the levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies such as tools, dirt and moisture.
BIT-PT850 heavy duty pan tilt head features IP66 ingress protection. Below is the explanation of IP66 rating:
Protected from total dust ingress.
Protected from high pressure water jets from any direction.

Will BIT-PT850 heavy duty pan tilt unit be able to work in costal environment?
It is well known that salt air in costal area corrodes metal in coastal environments, so to extend the working life time of pan tilt positioning unit, we are offering additional solution with corrosion resistant surface treatment and coating powder on BIT-PT850 heavy duty pan tilt unit.

What is “Guard Location” function in BIT-PT850 heavy duty pan tilt head positioner?
If the BIT-PT850 pan tilt unit doesn’t receive any control commands for a certain amount of preset time, it will start to run some preset movement like preset, cruising or auto scan.
