Light Duty Pan Tilt Head Positioner with Load Capacity 10kg

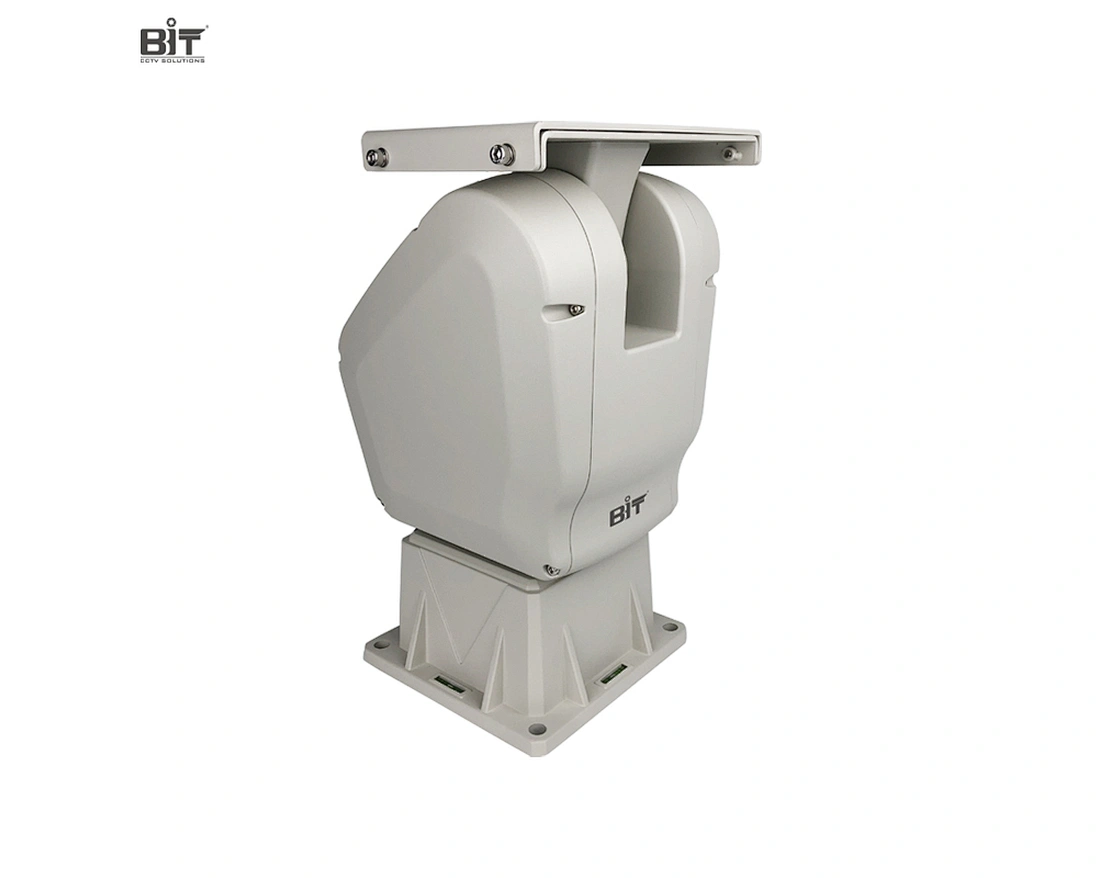

BIT-PT410 Light Duty Pan Tilt Head Positioner with Load Capacity 10kg (20.05lb)

Features of BIT-PT410 Outdoor High Speed Light Duty Pan Tilt Head with Payload up to 10kg (20.05lb)

Maximum top load capacity 10kgs (20.05lb)
Pan angle: 0-360°; Tilt angle: -90°~-+40°
Pan speed 0.01~100°/s; Tilt speed 0.01~40°/s
Preset accuracy: ±0.1°
High precision stepper motor and tilt worm gear drive transmission
Pan speed up to 100°/s
RS485 or RS422 pan tilt control with Pelco P/D protocol
Support position feedback and absolute position
Support self-lock in tilt direction
Rated IP66 for dust and water ingress

BIT-PT410

Quantity:

Overview of BIT-PT410 Light Duty Pan Tilt Head

BIT-PT410 is an advanced high speed light duty pan tilt unit for both indoor/outdoor application. With a maximum 10kg (20.05lb) load capacity, its pan rotation speed can be up to 100°/s for quick target positioning. Taking advantage of its high precision stepper motor and worm/gear drive mode, it features 0.1 degree positioning accuracy for repeat positioning and extremely low speed control. It also features 360 degree pan rotation and -90°~-+40° tilt rotation for wide angle surveillance. Camera housings are also available for your easy integration with cameras.

Technical Specifications of BIT-PT410 Light Duty Pan Tilt Head

Model	BIT-PT410
Max. Load Capacity	10kgs (20.05lb), top load
Rotation Angle	Pan: continuous 360° , Tilt: -90°~+40°
Rotation Speed	Pan: 0.01°/s-100°/s, Tilt: 0.01°/s-40°/s
Preset Accuracy	± 0.1°
Programmable Presets	255
Cruising Track	8, each with 32 preset positions
Scan	Support
Position Feedback	Support position query/feedback via RS485 or optional real-time feedback via RS422
Absolute Position	Support
Guard Location	Support with1 preset or 1 cruising track or 1 auto scan
Power Failure Memory	Support, back to PT position, scan/preset movement before power failure
Power Failure Memory
Self-lock	Support in tilt direction, not support in pan direction
Protocol	Pelco P/D
Communication Interface	RS485 or RS422
Baud Rate	2400/4800/9600/19200 bps
Transmission	Worm gear in tilt direction, belt in pan direction
Wiring/Interface
Pan Tilt Base	100M Ethernet with RJ45 (4 wire, pass-through), 24V AC/DC (2 wire), GND
Pan Tilt Top	100M Ethernet with RJ45 (4 wire, pass-through), RS485 P/T control (2 wire), 12V DC (2 wire), 24V AC/DC (2 wire), GND
General
Operating Voltage	AC24V±20 %, 50/60Hz or DC24V±10 %
Power Consumption	≤70W
Lighting Surge Protection	Power: 4000V (line to ground: 4000V, line to line: 2000V) Communication signal interface: 2000V (line to ground: 2000V, line to line: 1000V)
Working Temperature	-40ºC～+65 ºC (-40 ºF ~ 149 ºF )
Working Humidity	90±5% RH
Storage Temperature	-40 ºC～+70 ºC (-40 ºF ~ 158 ºF)
Protection Level	IP66
Material	Aluminium Alloy
Weight	12kg (26.45lb)
Dimension（L×W×H）	214×213×360mm (8.42x8.38x14.17in )

Dimension of BIT-PT410 Light Duty Pan Tilt Head

Unit: mm

FAQs of BIT-PT410 Light Duty Pan Tilt Head

What is the drive mode of light duty pan tilt head positioner BIT-PT410?

BIT-PT410, designed with high precision stepper motor and worm/gear drive mode, is high accurate pan tilt unit with ± 0.1 degree repeat positioning.

Does BIT-PT410 light duty motorized pan tilt unit support angle feedback and absolute position control?

Yes, BIT-PT410 support angle/coordinate feedback and advanced absolute position control via “Pelco D extended commands” , that includes some advanced commands for positioning control of the positioner.

Pelco Extended Commands

Set Pan Position – Set Tilt Position – Set Zoom Position – Set Focus Position

Query Pan Position – Query Tilt Position – Query Zoom Position – Query Focus Position

Do you provide camera housings for BIT-PT410 light duty pan tilt positioner?

Yes, please find the suitable one in our camera housing enclosure products category or contact us directly for advice.

Can BIT-PT410 light duty worm/gear pan tilt unit work outside in all weather condition?

BIT-PT410 pan tilt unit is IP66 rated for water and dust ingress for all weather application.
