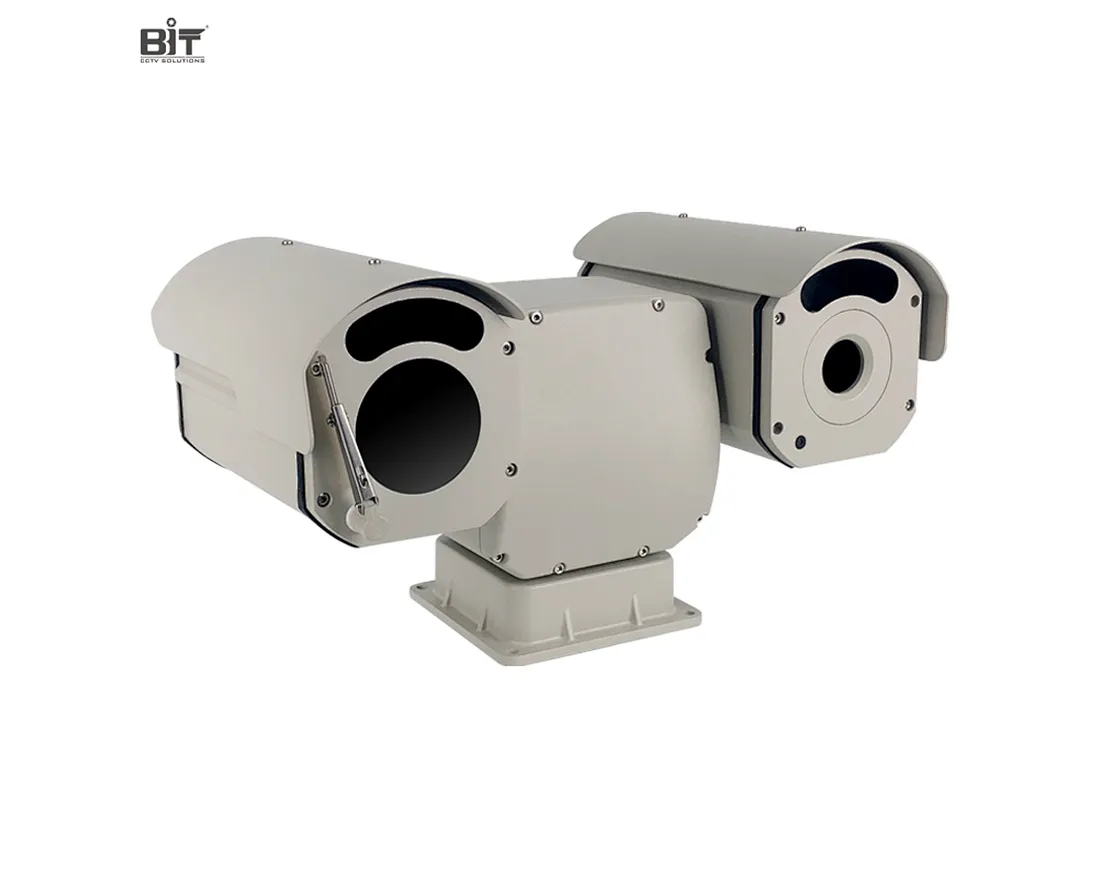

Outdoor Dual Worm/Gear Drive Light Duty Pan Tilt with Side Housings

BIT-PT306 Outdoor Dual Worm/Gear Drive Light Duty Pan Tilt with Side Housings

Features of BIT-PT306 Outdoor Dual Worm/Gear Drive Light Duty Pan Tilt with Side Housings

Outdoor use, two side load housings for customization
Pan angle: 0-360°, tilt angle: -90°~-+90°
Pan speed 0.1~30°/s, tilt speed 0.1~15°/s
Preset accuracy: ±0.1°
Dual worm gear transmission structure, electronic anti-shake and mechanical anti-loose design
Self-lock with memory after power failure, strong wind-resistance
Support coordinate feedback and absolute control
Support lens preset, adaptive speed to zoom rate
Support analogue or network camera
Rated IP67 for dust and water ingress

Note: BIT-PT306 does not include any cameras inside housings.

BIT-PT306

Quantity:

Overview of BIT-PT306 Outdoor Dual Worm/Gear Drive Light Duty Pan Tilt with Side Housings

BIT-PT306 is a high profile light duty pan tilt head with two side housings for users to integrate their own devices into housing. Designed and equipped with high precision stepper motor and dual worm/gear drive, BIT-PT306 is capable of rotating endless 360°pan and ±90°tilt at a speed of 30°/s and 0.1°positioning accuracy. Meanwhile, BIT-PT306 motorized pan tilt features many advanced functions: absolute control, coordinate feedback, electronic anti-stake, preset, curising track, auto scan. It also features low power consumption (less than 40w) and IP67 ingress protection.

Technical Specifications of BIT-PT306 Outdoor Dual Worm/Gear Drive Light Duty Pan Tilt with Side Housings

Model	BIT-PT306
Load Type	Indoor/outdoor, two side housings
Rotation Angle	Pan: continuous 360° Tilt: -90°~+90°
Rotation Speed	Pan: 0.1°/s-30°/s Tilt: 0.1°/s-15°/s
Programmable Presets	200
Preset Accuracy	± 0.1°
Cruising Track	1
Auto Scan	1
Coordinate Feedback	Support angle query feedback/real-time feedback (optional)
Absolute Control	Support
Lens Preset	Support
Lens Control Speed	Continuously adjustable zoom, focus speed
Adaptive PT Speed to Zoom	Speed up while zooming out, slow down while zooming in
Guard Location	Support with1 preset or 1 cruising track or 1 auto scan
Power Failure Memory	Support, recover to PT position, scan/preset/cruising track movement before power failure
Power Failure Memory
Self-lock	Support
Protocol	Pelco P/D
Baud Rate	2400/4800/9600/19200 bps
Communication Interface	RS485 (Optional RS422) or RJ45
Drive	Dual worm gear drive
General
Operating Voltage	DC24V±10 %
Power Consumption	≤40W
Working Temperature ( with heater)	-40ºC～+70 ºC (-40 ºF ~ 158 ºF)
Working Humidity	90±5% RH
Storage Temperature	-35 ºC～+65 ºC (-40 ºF ~ 158 ºF )
Protection Level	IP67
Material	Aluminium Alloy
Weight	4.5kg (9.92lb)
Dimension（L×W×H）	348×200×200mm（13.70x7.87x7.87in）

Dimension of BIT-PT306 Outdoor Dual Worm/Gear Drive Light Duty Pan Tilt with Side Housings

Unit: mm

FAQs of BIT-PT306 Outdoor Wall Mount Bracket for Pan Tilt Head

Does BIT-PT306 worm/gear light duty pan tilt unit come with cameras inside two side housings?

No, BIT-PT306 pan tilt head doesn’t come with any camera inside housing. These housings are for customer to integrate their own cameras.

What is the drive mode of BIT-PT306 light duty pan tilt head positioner?

BIT-PT306 is equipped with dual worm/gear drive for both pan and tilt direction.

What is the dimension/space inside BIT-PT306 pan tilt housings?

Please share your camera or devices 3D/2D detailed drawings with us for evaluation to see if your device can fit into BIT-PT306 pan tilt positioner housings.

Will you install cameras for customers into BIT-PT306 light duty pan tilt unit housings or they have to do it own their own?

Both are acceptable. We will provide needed technical support if customers prefer to do it on their own.
