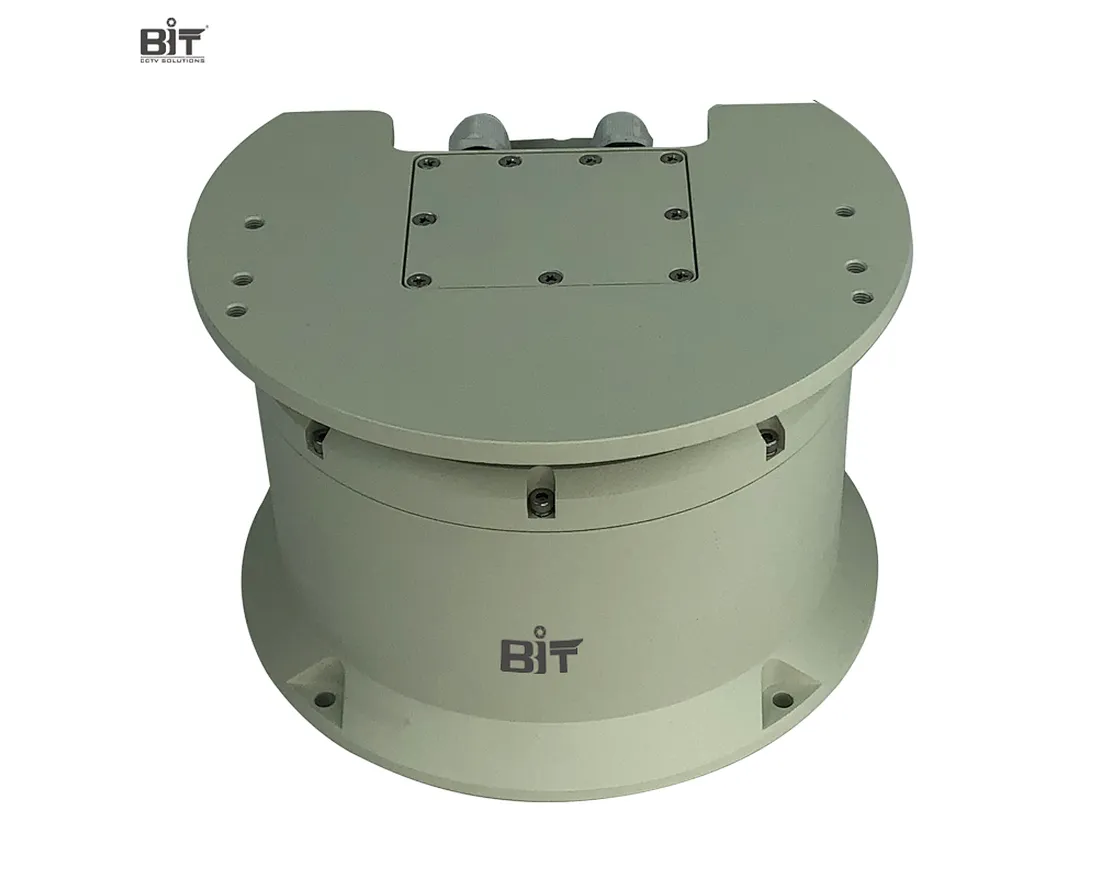

BIT-PT005 Outdoor Variable Speed Light Duty Single-Axis Pan Head Positioner Load Capacity 10kg
Features of BIT-PT005 Outdoor Variable-Speed Light Duty Single-Axis Pan Head Positioner Maximum Load Capacity 10kg (20.05lb)
Maximum pan load capacity 10kg (20.05lb)
Rather small size, 2.5kg, 170mm diameter top plate
Die-cast aluminum material
360 degree continuous pan rotation
Pan speed 0.01°～60°/S
Preset accuracy: ±0.2°
High precision worm/gear drive and stepper motor transmission
Self-lock with memory after power failure
Support coordinate feedback and control
Support lens preset, adaptive speed to zoom rate
Rated IP66 for dust and water ingress
Maximum pan load capacity 10kg (20.05lb)
Rather small size, 2.5kg, 170mm diameter top plate
Die-cast aluminum material
360 degree continuous pan rotation
Pan speed 0.01°～60°/S
Preset accuracy: ±0.2°
High precision worm/gear drive and stepper motor transmission
Self-lock with memory after power failure
Support coordinate feedback and control
Support lens preset, adaptive speed to zoom rate
Rated IP66 for dust and water ingress
BIT-PT005
Quantity:
Overview of BIT-PT005 Light Duty Single-Axis Pan Head
BIT-PT005, only 2.5kg weight, is a light duty single-axis pan rotatory unit that will only rotate in pan direction, but not tilt direction. With worm/gear drive transmission, three load capacity configurations are available as 5kg, 8kg and 10kg with different maximum rotation speed up from 30°/S to 60°/S. It is made of die-cast aluminum material and equipped with default dual military style connectors. Many other advanced features are available on BIT-PT005, including preset, cruising track, auto scan and guard location.
Technical Specifications of BIT-PT005 Light Duty Single-Axis Pan Head
Model | BIT-PT005 | ||
Rotation Speed | Pan 0.01°～30°/S | Pan 0.01°～45°/S | Pan 0.01°～60°/S |
Rotation Angle | Pan 0-360° continuous rotation（Optional limited angle） | ||
Preset | 200 | ||
Repeat Accuracy | ±0.2° | ||
Positioning Angle Resolution | 0.01° | ||
Angle, Focal Length Feedback | Optional | ||
AUX | Optional 2 groups | ||
Cruising Track | 8, each with 10 positions | ||
Guard Location | Back to home position in 1～60 min | ||
Auto Scan | 1 | ||
Communication | PELCO_D/PELCO_P | ||
Baudrate | 9600bps（optional 2400/4800/9600/19200 bps） | ||
Interface | RS485（optional RS485/RS422/RS232） | ||
General | |||
Power Input | AC24V/DC24V | ||
Consumption | Max≤40W/Standy 5W | ||
Working Temperature | -25℃～+55℃, 90%±3%, no condensing（optional -40℃～+55℃） | ||
Storage Temperature | -40℃～+65℃ | ||
Load Capacity (Rotation Diameter：150mm) | 10kg (20.05lb) | 8kg (17.64lb) | 5Kg (11.02lb) |
Dimension (mm) | 170x170x111mm (6.69x6.69x4.37in) | ||
Weight | 2.5Kg (5.51lb) | ||
Load Type | Top load | ||
Drive Transmission | Worm gear transmission | ||
Protection | IP66 | ||
Dimension of BIT-PT005 Light Duty Single-Axis Pan Head
Unit: mm
FAQs of BIT-PT005 Light Duty Single-Axis Pan Head Positioner
Does BIT-PT005 Outdoor Variable-Speed Light Duty Single-Axis Pan Head Positioner rotate in both pan and tilt direction?
No, BIT-PT005 is a single-axis pan rotation unit that will only rotate in pan direction, but not tilt direction.
Will BIT-PT005 light duty pan rotation unit be able to work in outdoor windy situation?
Yes, with worm/gear drive design, BIT-PT005 features IP66 water proof, wind-resistance and self-lock after power failure for outdoor windy environment application.
Can we switch between three available rotation speed and load capacity on BIT-PT005 single-aix motorized pan rotation unit?
No, it has to be one of those three configurations between 5kg, 8kg and 10kg load capacity. Please let us know the total weight that you expect BIT-PT005 to load while placing order with us.
Can BIT-PT005 outdoor single-aix pan head positioner work in low temperature environment and what is the lowest working temperature?
BIT-PT005 has optional low temperature sensor and heating component to work in as low as -40℃ outdoor situation. Please do let us know if you need this feature.
