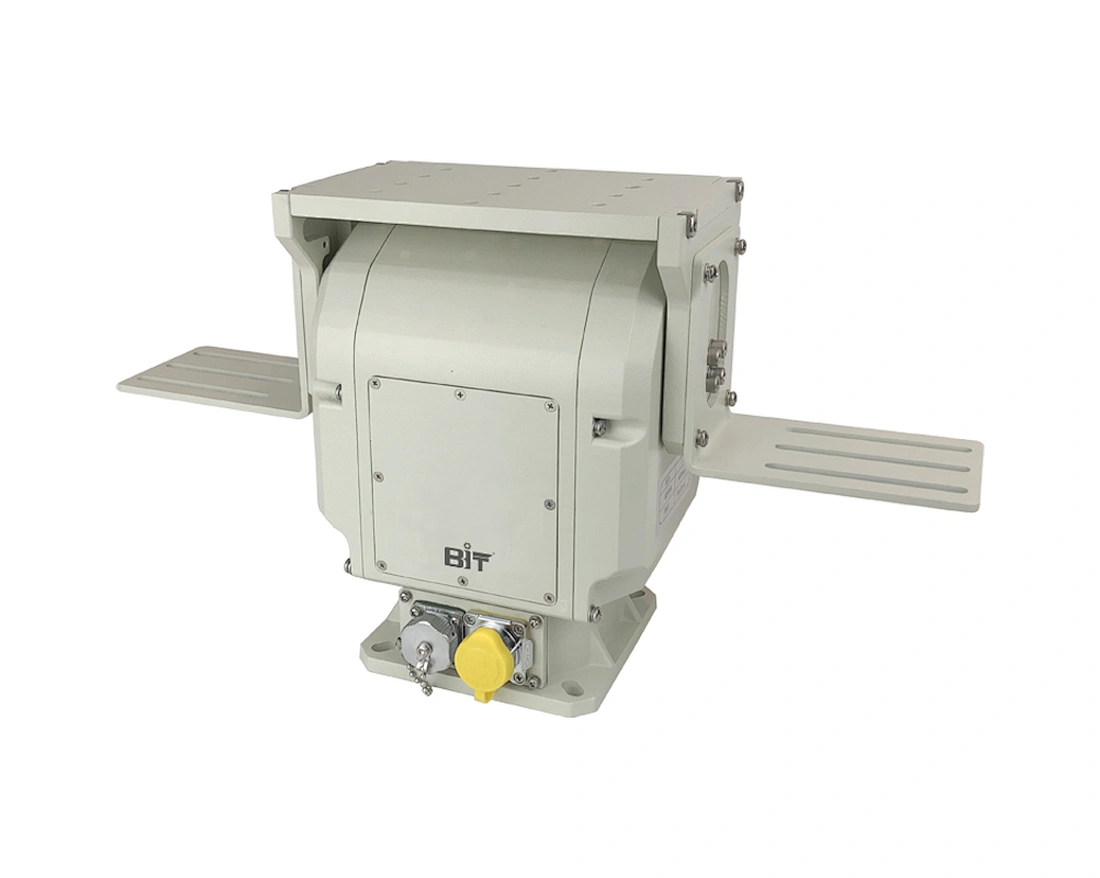

Vehicle Load Light Duty Pan Tilt Head Positioner with Load Capacity 10kg

Vehicle Load Light Duty Pan Tilt Head Positioner with Load Capacity 10kg (22.05lb)

Features of BIT-PT010W Vehicle Load Variable Speed Light Duty Pan Tilt Head/Positioner

Maximum top load capacity 10kg (22.05lb)
Pan angle: 0-360°, tilt angle: -60°~-+20°
Pan speed 0.02~20°/s; tilt speed 0.02~10°/s
Positioning accuracy: ±0.1°
High precision stepper motor, worm/gear drive transmission
Support Pelco D/P with RS485/RS422
Support DC12V for vehicle load application
Support angle feedback and absolute control
Die-cast aluminum alloy material
Rated IP66 for dust and water ingress

BIT-PT010W

Quantity:

Overview of BIT-PT010W Vehicle Load Variable Speed Light Duty Pan Tilt Head/Positioner

BIT-PT010W is a small size light duty pan tilt unit with the most required features for small pan tilt positioning system. It is capable of carrying up to 10kg (22.05lb) with 360 degree continuous pan rotation angle and -60°~-+20°tilt angle and rotates at a low speed of 0.1°/s . With gear drive transmission, it also has many other advanced features including preset, cruising track, scan, self-lock, guard location. Via RS485/422 interface, Pelco D, extended commands, absolute position control, coordinate feedback are also available. Rated IP66 ingress protection, BIT-PT010W pan tilt head is a good choice for all weather operation.

Technical Specifications of BIT-PT010W Vehicle Load Variable Speed Light Duty Pan Tilt Head/Positioner

Model	BIT-PT010W
Max. Load Capacity	10kg (22.05lb)
Load Type	Indoor/outdoor, vehicle load, top load
Rotation Angle	Pan: continuous 360° ; Tilt: -60°~+20°
Rotation Speed	Pan: 0.02~20°/s ; Tilt: 0.02~10°/s
Programmable Presets	200
Preset Accuracy	± 0.1°
Cruising Track	2
Auto Scan	1
Coordinate Feedback	Support angle query feedback/real-time feedback (optional RS422)
Absolute Control	Support
Guard Location	Support
Power Failure Memory	Support, recover to PT position, scan/preset/cruising track before power failure
Power Failure Memory
Protocol	Pelco P/D
Baud Rate	2400/4800/9600/19200 bps
Communication Interface	RS485 (Optional RS422) or RJ45
Transmission	Worm/gear transmission
General
Operating Voltage	AC/DC24V self-adaptive (Optional AC12V/DC12V/AC220V)
Power Consumption	≤40W
Working Temperature	-25ºC～+55 ºC
Working Humidity	90±5% RH
Storage Temperature	-40 ºC～+70 ºC (-40 ºF ~ 158 ºF )
Protection Level	IP66
Material	Aluminium Alloy
Weight	9.5kg
Dimension（L×W×H）	256×154×270mm

Dimension of BIT-PT010W Light Duty Pan Tilt Head

Unit: mm
