2km Long Range Night Vision Laser Network PTZ Camera
Features of BIT-RC2132W Long Range HD Network Laser Night Vision PTZ Camera
2km day/1km night long range 24 hour surveillance
080P HD network camera, 0.005lux color to B/W
8~320mm lens, motorized zoom, auto focus
10W, 808nm NIR military laser illuminator
360 continuous pan rotation, tilt angle: -75°~+40°
Pan: 0.1°/s-60°/s , tilt: 0.1°/s-30°/s rotation speed
Support absolute control, coordinate display, preset, cruising and scan
Die-cast aluminum alloy housing, IP66 ingress protection
2km day/1km night long range 24 hour surveillance
080P HD network camera, 0.005lux color to B/W
8~320mm lens, motorized zoom, auto focus
10W, 808nm NIR military laser illuminator
360 continuous pan rotation, tilt angle: -75°~+40°
Pan: 0.1°/s-60°/s , tilt: 0.1°/s-30°/s rotation speed
Support absolute control, coordinate display, preset, cruising and scan
Die-cast aluminum alloy housing, IP66 ingress protection
BIT-RC2132W
Quantity:

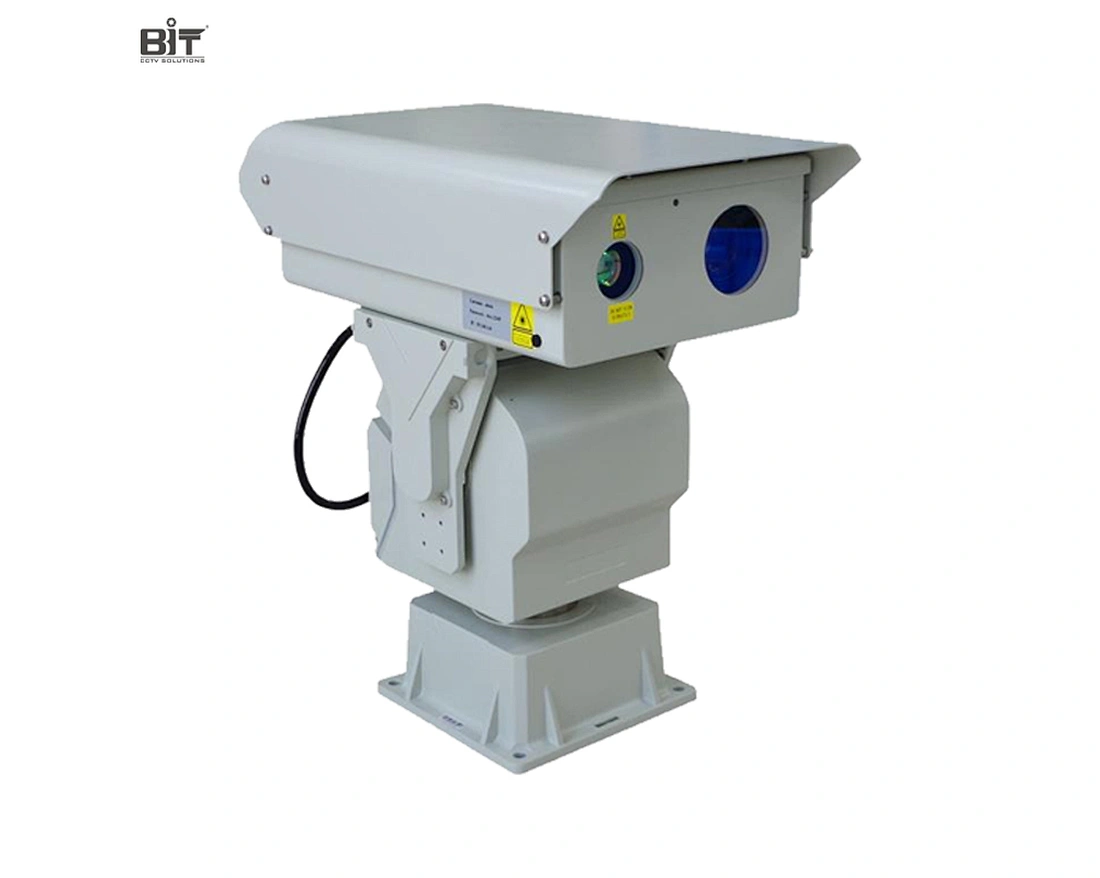

Overview of BIT-RC2132W Long Range HD Network Laser Night Vision PTZ Camera
BIT-RC2132W, a 2km long range night vision laser network PTZ camera is designed for 24 hour monitoring at all-weather condition. With super homogenizing NIR laser and low illumination 2mp 1080P HD camera, its maximum detection distance for object can be up to 2 km at day and 1 km at night.
It features built-in industrial grade embedded control electronic system, HD network camera operation like zoom, focus, video switch and pan tilt rotation is stable and accurate. One integral aluminum alloy housing features weatherproof IP66 to make sure its great performance outdoor.
Application Scenario: Applicable in large-scenarios, such as: smart city, high-spot watching, mobile&traffic, railway&freeway, prison, harbor, maritime, plant, oil fields, electricity, public security and fire-fighting, forest fire prevention, scenic sights and etc.
Technical Specifications of BIT-RC2132W Long Range HD Network Laser Night Vision PTZ Camera
Model | BIT-RC2132W | |
Detection Range | Day:2km/Night:1km | |
Consumption | 10W, 808nm Military NIR | |
Laser Angle | 1°～20° | |
Angle & Distance Matching Technology | 1. DSS digital stepper illumination angle control, advanced laser angle and distance matching technology, min 0.1° follow-up zooming | |
2. GHT-II super homogenizing HD illumination technology | ||
3. 0.01°SLM optical axis aiming and lock | ||
Camera | 1/2.8'' CMOS | |
0.005lux high sensitive color to B/W | ||
2MP, 1920*1080, Automatic ICR switch | ||
H.264/MPEG4/MIPEG video format, support dual video streams | ||
Video Bitrate 32Kbps~16Mbps, 60Hz30 frame/s | ||
Support SD card storage | ||
Photo Cell Control | Control mode: independent photosensitive control circuit, precise synchronous switch laser and day/night | |
Lens | 8-320mm focal length | |
F2.0-360 | ||
FOV: (H)41°～1.1° | ||
MOD:1.5M | ||
HD infrared correction, the same focus at day and night | ||
Motorized /manual zoom, DC 8~12V, auto IRIS, DC5V | ||
Fog Penetration | AFR enhanced image processing technology | |
LPR (optional) | Avoid strong light for license plate recognition | |
Housing | 1. Material: Die-cast aluminum alloy housing, sealed and waterproof | |
2. Structure: double window design | ||
3. Surface treatment: PTA three-resistance coating, anti corrosion(optional) | ||
4.Ingress protection: IP66, waterproof, dustproof | ||
5.Connector：Aviation waterproof connector | ||
PT | Pan: 360° continuous rotation，tilt: +40°～-75° | |
Rotation speed： Pan: 0.1°～60°/S, tilt: 0.1°～30°/S | ||
Positioning accuracy: 0.1° | ||
Advanced movement: 200 preset positions, cruising track, pattern tour and auto scan | ||
Support coordinate query/feedback and absolute control | ||
Interface | 1*RJ45，1*AC/DC 24V | |
Optional: Reserved RC422/485 and BNC, connect with radar, GIS or others | ||
Military aviation water-proof connector | ||
Protocol | 1. TCP/IP、HTTP、DHCP、DNS、DDNS、RTP and more 2. Support Onvif 2.4 3. P/T Control Protocol: Pelco-P/Pelco-D Baud rate: 2400、4800、9600、19200(optional) | |
Power supply | AC/DC 24V±10%，50Hz，150W， AC220V->AC24V adapter (DC12V for option) | |
Working Environment | 1. Working temperature: -25℃～+55℃ (-40℃ optional) 2. Storage temperature:-35℃～+65℃ 3. Working Humidity:<90% 4..Anti-Shake 5.Anti-shock 6.IP66 protection | |
Weight | ≤30kg | |
Dimension of BIT-RC2132W Long Range HD Network Laser Night Vision PTZ Camera
Unit: mm
FAQs of BIT-RC2132W Long Range HD Network Laser Night Vision PTZ Camera
What Is The Maximum Detection Range Of Long Rang Laser Night Vision PTZ Camera BIT-RC2132W?
Maximum detection distance of long rang night vision PTZ camera BIT-RC2132W is 2km at day time and 1km at night time in good weather condition. Video performance can be affected by rain, fog, or snow weather.
What Devices Is Used For Camera Illumination At Night Time On Long Range PTZ Camera BIT-RC2132W?
A military standard, 10W, 808nm NIR laser illuminator is used for its night illumination.
How Does Laser Beam Match With Visible Camera Zoom At Laser PTZ Camera BIT-RC2132W?
Advanced laser angle and camera zoom/view distance matching technology developed by BIT-CCTV is used based on DSS digital stepper laser illumination angle control to make sure homogeneous illumination for camera picture.
What Is The Ingress Protection Rate Of Long Range Laser Night Vision PTZ Camera BIT-RC2132W?
BIT-RC2132W night vision long range PTZ camera is IP66 rated for all weather application.
